USED COIL-WINDING EQUIPMENT
E. McGrath Inc, 35 Osborne St. Salem MA 01970
|
CW1101 |
Bachi 115-E/C-SCR winding machines, 3 preset electronic counters, 0 to 2-3/8"
winding width, 4.5" diameter maximum, 17 AWG and finer. Several in stock, each: |
$2,950 |
|
CW1102 |
Bachi 115B. 17 AWG and finer, 2-3/8" traverse, 3-3/4" OD maximum mechanical counter. Capacitor start single
speed motor with two step pulley. Now fitted with bonding fixture to pass
current through completed winding. 115 volts. Change gears not included.
PIX2 |
$2,150 |
|
CW1103 |
Bachi 115-E/C-SCR winding machines, single preset counter. 115v |
$2,750 |
|
CW1105 |
Stevens 225-AM progressive universal winder, for RF Chokes, etc. 20 to 48AWG and
up to 1.25" wide coils. Uses cams & gears, no extra furnished. Incomplete
machine.PIX2
PIX3 |
$975 |
|
CW1106
|
Stevens 319AM, w/o motor or counter. s/n 10334 18 to 46 AWG, uses gears.
Built-in cam. 130# weight |
$625
|
|
CW1107 |
Stevens 310B AM winder, w motor, parts machine only. s/n 21448 |
$350 |
|
CW1108 |
Stevens 310B AM winder, parts machine only. s/n 24921 |
$225 |
|
CW1110 |
Boesch MW-400 Mini Tor Winder w/ predetermined counter, for use in
preloading shuttles for torroid winding, 115/60/l |
$325
|
|
CW1115 |
Adams Maxwell 1201-3 coil winder with counter and foot pedal |
$975 |
|
CW1126
|
Leesona (Essex) 108 coil winder. 9 to 1000 turns per inch 19 to 42 B&S wire gauge.
Maximum diameter 5" round or square. 220/60/1. 544 net weight. Tension racks are
available separately. |
$2,150
|
|
CW1126A
|
Leesona Essex 108 tension sets (MANY AVAILABLE) each
|
$175
|
|
CW1126B |
Leesona Essex 108 pipe frames for tensions
PIX2 PIX3 |
$400 |
|
CW1127 |
Leesona Essex 108 gear transmission assembly |
$925 |
|
CW1129
|
Meteor 307 winder, 24-60 AWG, 4" width electronic controls
PIX2 |
$5,500
|
|
CW1130 |
Meteor 307 power supply/pedal assembly |
$850 |
|

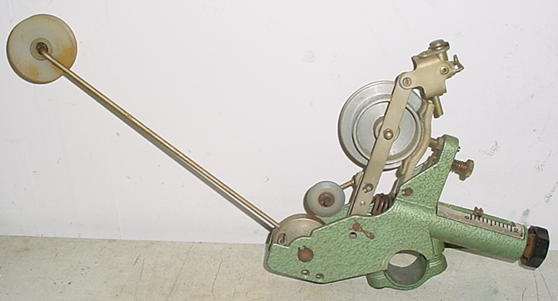

CW1142
|
Blume & Redecker tensions, #20-32 AWG 10@
|
$295
|
|
CW1146
|
Stevens Model 3509 cord spiral wrap machine, covers cord
¼" dia variable pitch, geared four turns per inch
½" dial. Similar to current model
Stevens 609 |
$3,250
|
|
CW1148 |
Meteor 301 winding machine 16 to 50 AWG, 9 inch width, 115 volts |
$2,950 |
|
CW1149
|
Meteor 485 tension 20-34 AWG, 170 to 3000 grams |
$675
|
|

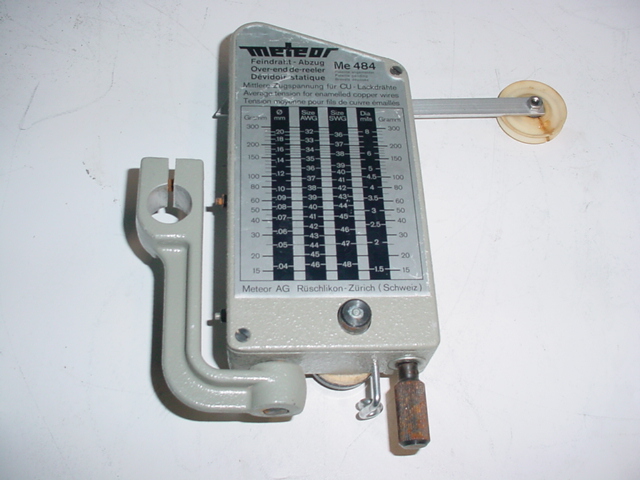

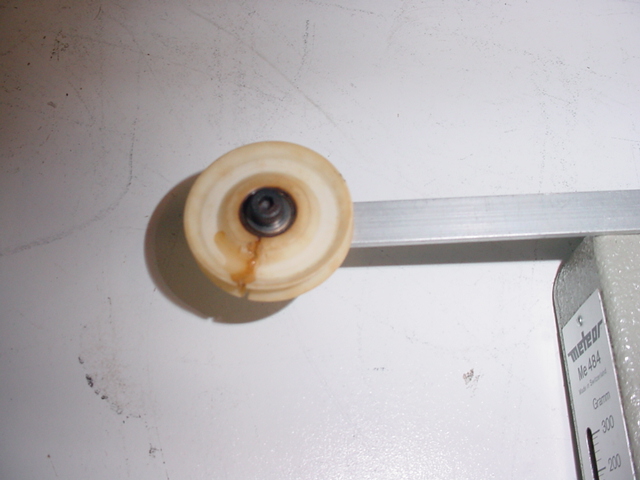

CW1150 |
Meteor 484 tension 32 to 46 AWG, 15 to 300 grams |
$625 |
|
CW1157 |
Gorman 2 + 2 winder, 24 to
50 AWG, 2.5" dia x 4" long. 115 volts 160#
PIX2 |
$3,500 |
|
CW1160
|
Amacoil/Bobifil Automat B, single head fly winder with indexing turret,14-42
AWG, 3.94" width,
7.88" dia, .10 to 1.75, 4 step counter
PIX2 |
$6,250
|
|
CW1161 |
Amacoil 4 spindle fly winder, Bobifil Automat A/4. 18-46 AWG, 1.97" width
by 1.97" OD maximum. 1/3 hp, 208/240/60/1. 463#. |
$6,250 |
|
CW1162
|
Sincrofil bobbin winder w/ 5" width, pre-determined counter 1
tension
|
$1,275
|
|
CW1164
|
Stevens 310AM coil winder w/ powered tailstock, electronic controls &
counter. No traverse. 1/4 hp motor. s/n 26932 18-40 AWG |
$2,150
|
|
CW1165 |
Stevens 310AM coil winder w/ powered tailstock, brake & counter 1/8 hp
motor s/n 19978 18-40 AWG |
$1,950 |
|
CW1166 |
Stevens T-2D double tension, 20 to 44 AWG |
$395 |
|
CW1167 |
Stevens 92-CL De-Reeler 32 59 46 AWG (ice cream cone type) 5 available |
$125 |
|
CW1168
|
Bachi 115H winder w/ counter, hand fed . Not the type with change gears. 44# |
$750
|
|
CW1170
|
Coweco CK winders, #18-50, 2" w x 1½", takes
change gears w/o tail stock or turret. Two available. Controls for two now
mounted on single panel. No tail stock. Can be mated to an automatic
turret, not included. |
$1,750
|
|
CW1177 |
Universal # 5 roller table New
Arrival |
$525 |
|
|
|
|
|
|
STRIPPERS & OTHER WIRE EQUIPMENT |
|
|
CW1302
|
Artos CS-6 wire stripper, older model but factory rebuilt, no safety cage.
|
$1,250
|
|
CW1305A |
Carpenter 74-A rotary wire stripper, double unit New
Arrival |
$395 |
|
CW1306
|
Lamaco BEO 78 butt stacker, 7/8" capacity, ¼HP, 115/60/1
|
$750
|
|
CW1317
|
Reeve L4D 1 kw RF heater, fuses pre-tinned wires for stripping. Needs
oscillator tube. |
$750
|
|
CW1324
|
Ackerman-Gould MM-2 manual hot stamper
|
$495
|
|
CW1328
|
Eubanks 810A 12-26 AWG, air op stripper
|
$3,150
|
|
CW1328A
|
Eubanks 51 long wire trough & stacker
|
$550
|
|
CW1332
|
Kingsley HS, tubing ink dryer
|
$495
|
|
CW1343
|
Eubanks 2700/II stripper, 20-30 AWG solid, 20-26 AWG stranded, 1" to 999",
electronic counter, stand w/air tank & prefeeder
|
$3,850
|
|
CW1350
|
Mechtrix 5101 pre-feeder. 115 volts, variable speed DC drive. 5/8" arbor with
swing up to 12" diameter, shown with 6" spool.
PIX2
PIX3 s/n 1114 |
$950 |
|
CW1352
|
Komax 27 cable drawing machine |
$950
|
|
CW1353 |
Komax 33 wire cutter and stripper, 1 mm to 100 meters,AWG 14 to 30 stranded, 20
to 30 solid. 115 volts 50/60 hz. 55 # net weight. |
$3,450 |
|
CW1360
|
Aoki Laminators E & I type, AK-OEI-SD-C-76.2 AK-OEI-SD-57.15 |
$575
|
|
CW1361 |
Aoki Laminators E & I type,AK-OEI-SD-48X AK-OEI-SD-X-35 AK-OEI-SD-41.2X |
$475 |
|
CW1361 |
Aoki core stacking Laminator E & I type, manually operated, AK-HEI-35 |
$325 |
|
CW1362 |
Kinematrix 802 automatic laminating machine, with nests for 7/8, 1, 1-1/8,
1-1-1/4 and 1-1/2 inches. 115 volts New
Arrival |
$2,250 |
|
CW1365
|
Lamb Knitting Machine Co, ST5
circular weft knitting machine, requires ¼ hp DC motor & control.
|
$975
|
|
|
|
|
|
|
For pad printers and other marking machines go to:
Photolith & Printing |
|
|
|
