Reconditioned
Diffusion Pumps
E. McGrath Inc, 35 Osborne St, Salem MA 01970
Photographs shown are prior to reconditioning
Alcatel
|
VPD100
|
Alcatel
Crystal 200 ISO200 H2O baffle 40 outlet, 1800 watts, 220 volts, 1250
l/s. 53# |
sold |
Balzers
|

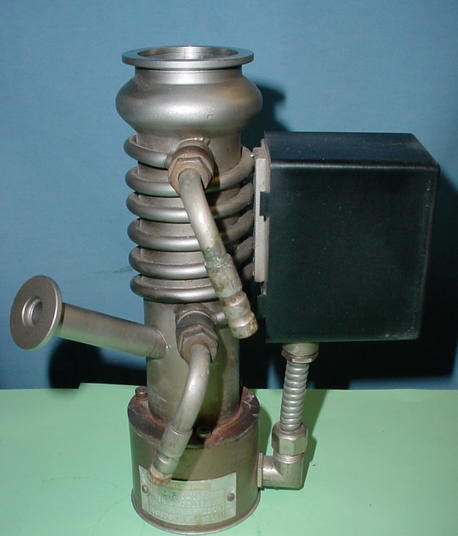

VPD180
|
Balzers
DIF040W KF40. 40 l/s, 3# |
$795
|
|
VPD190
|
Balzers
DIF063 ISO63. 180 l/s, 9# |
$995
|
|
VPD200
|
Balzers
DIF160 ISO160. 1,100 l/s, 27# |
$1,100
|
|
VPD250
|
Balzers
DIF250 ISO250. 3,100 l/s, 43# |
$2,250
|
|
VPD260
|
Balzers
DIF500A ISO500. 11,500 l/s, 396# |
$8,000
|
Cooke
|
VPD300
|
Cooke
DPD2 2" ASA
|
$695
|
|
VPD350
|
Cooke
DPD6 6" ASA
|
$850
|
CVC

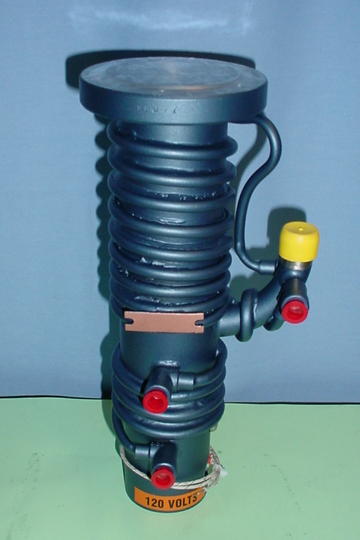

| VPD400 |
CVC PMCS-2C 2" CVC flange 105 l/s |
$625 |
| VPD420 |
CVC PVMS-30 2" ASA 285 l/s |
$675 |
| VPD430 |
CVC PMC-4 4" ASA 690 l/s |
$1,100 |
| VPD440 |
CVC PMC-6B 6" ASA 1,400 l/s 52# |
$1,650 |
| VPD450 |
CVC PVMS-100 6" ASA expanded 2,500 l/s |
$1,850 |
| VPD460 |
CVC PBA-100A 6" ASA expanded pump plus LN2 trap 960
l/s at the baffle |
$4,100 |
BOC
Edwards
|
VPD535
|
Edwards
EO4 ISO100-12 hole flange. 600 l/s, 18# |
$825
|
|

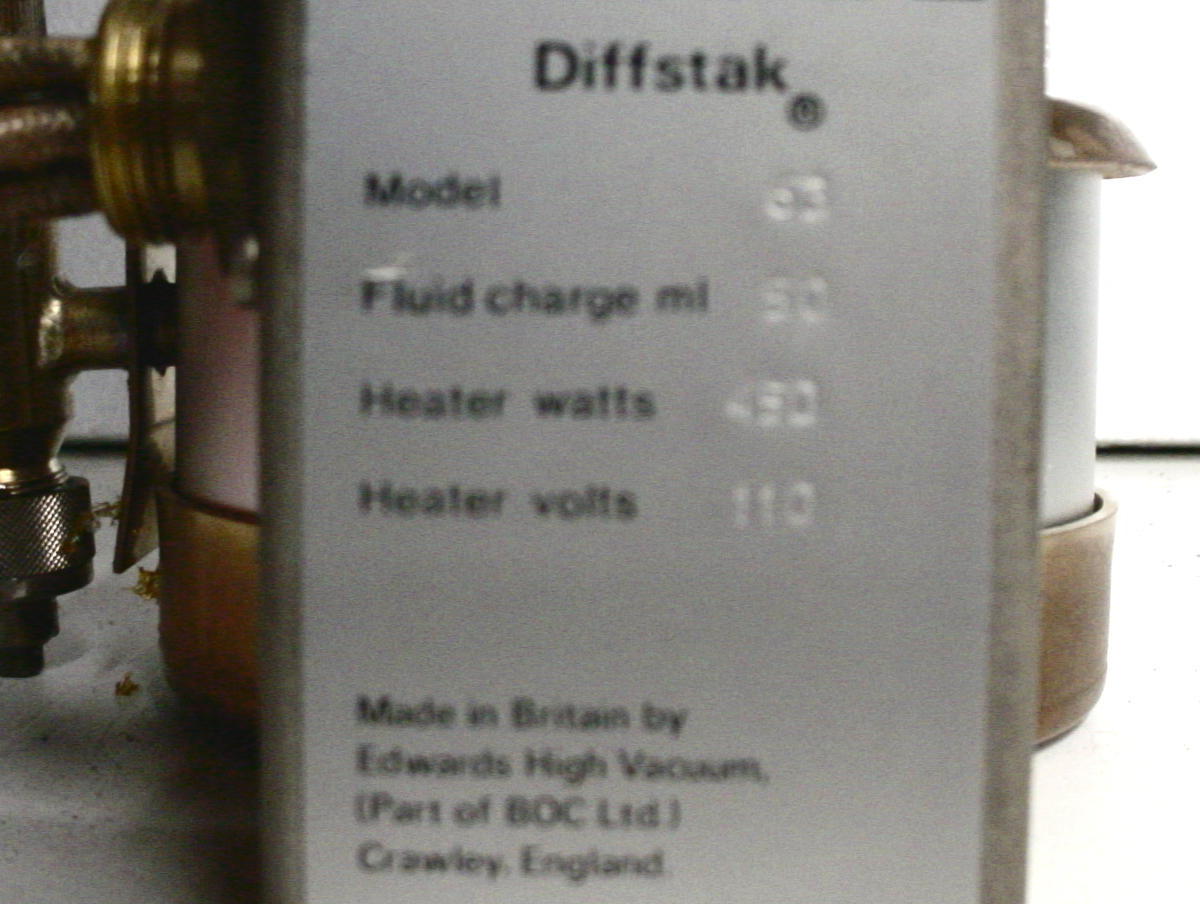

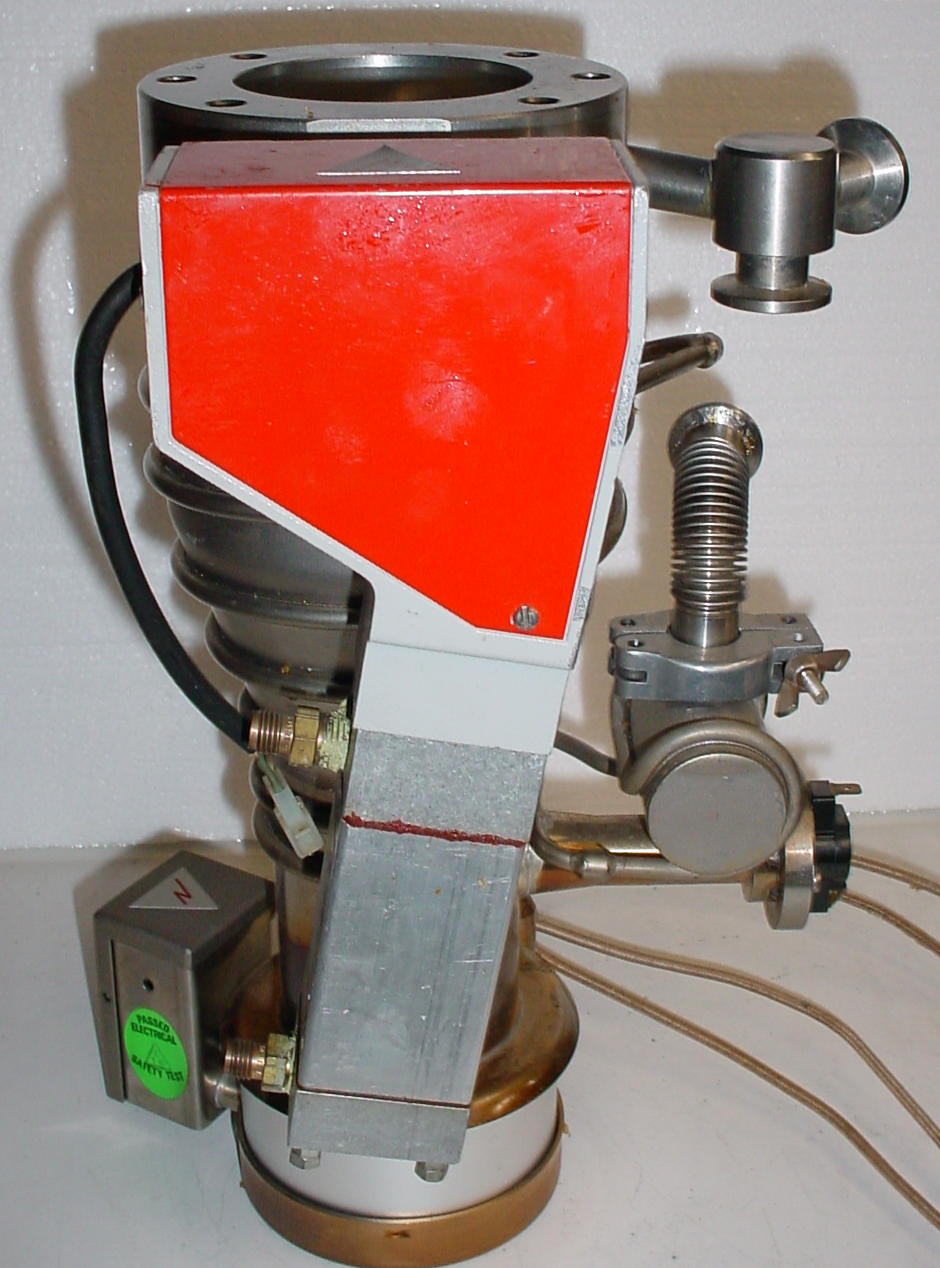

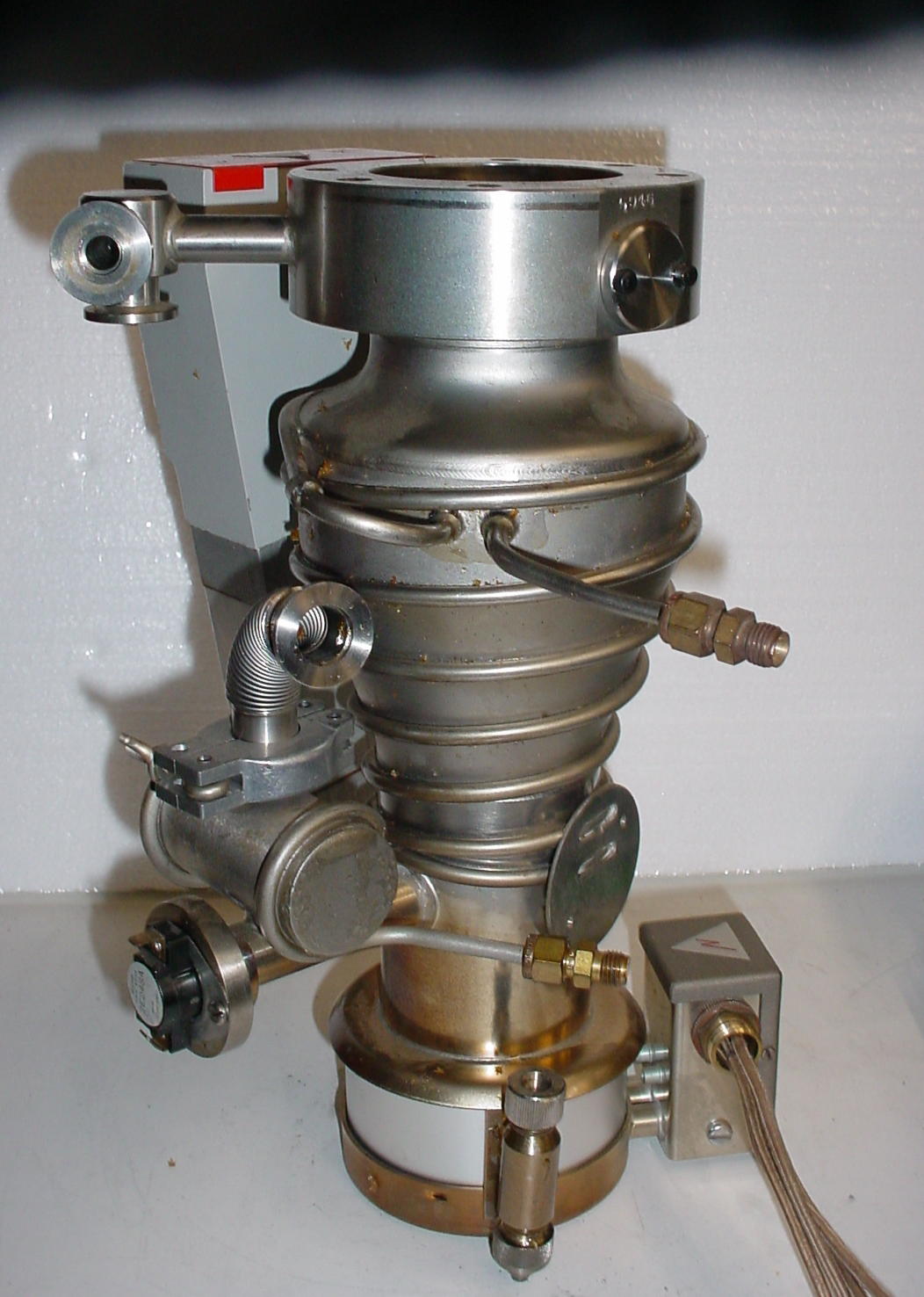

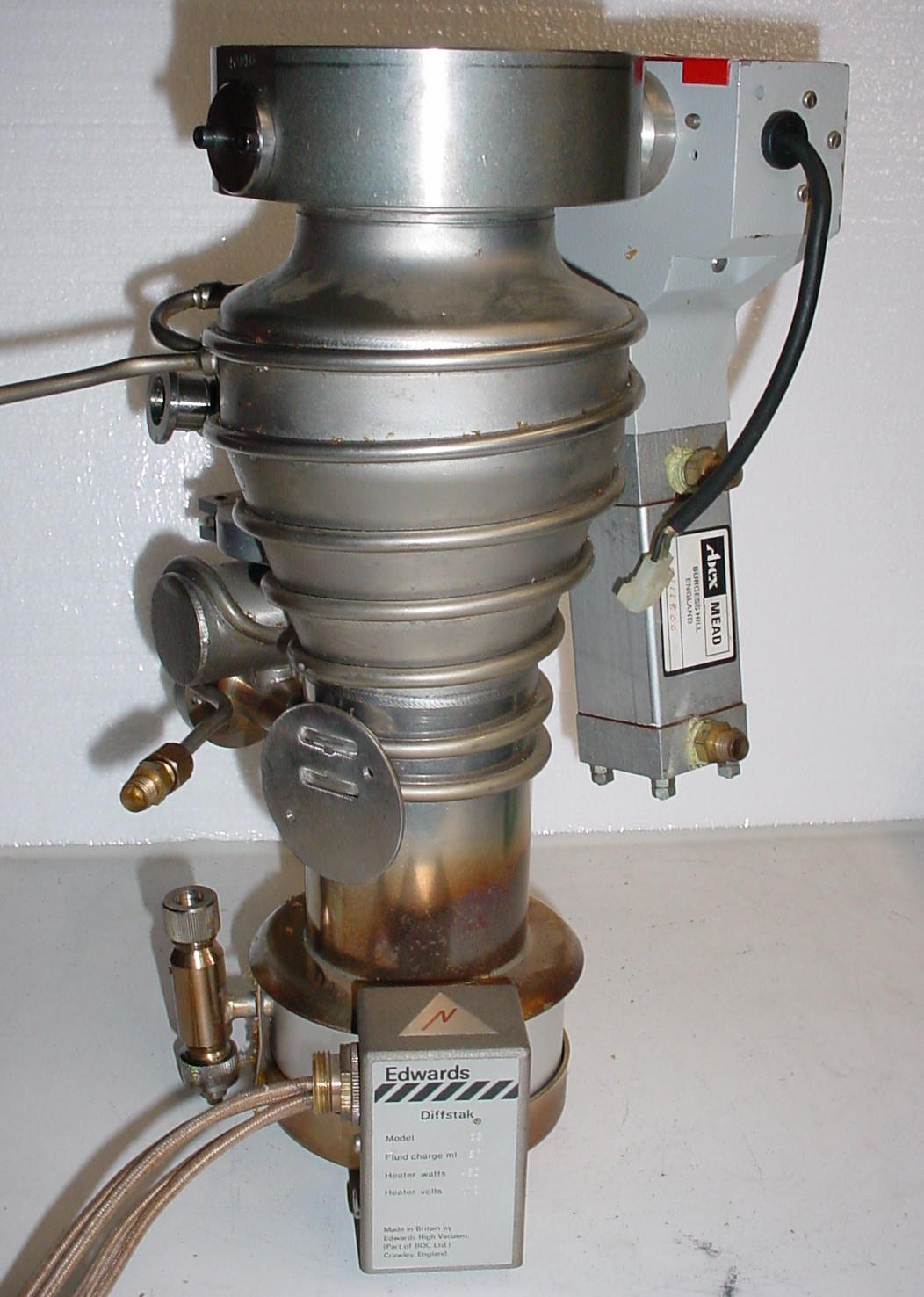

VPD550
|
Edwards
63P Diffstak ISO 63 air operated. 135 l/s, 20#
NEW
|
$1,550
|
|
VPD560
|
Edwards
100C Diffstak ISO100 -no valve. 300 l/s, 20# |
$1,150
|
|

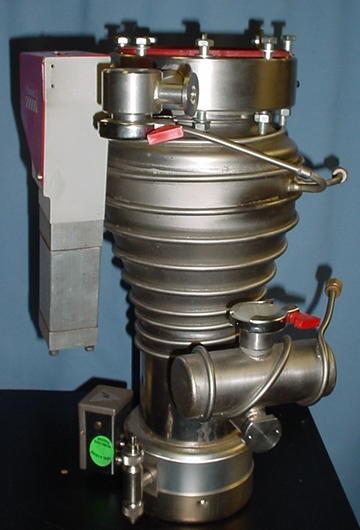

VPD575
|
Edwards
100P Diffstak ISO100 air-operated. 280 l/s, 27# |
$1,800
|
|
VPD590
|
Edwards
CR100P Diffstak ISO100 cryocooled , air-operated 230 l/s, 46# |
$2,800
|
|
VPD592
|
Edwards 160F Diffstak 8" od Conflat flange -no valve
|
$2,850
|
|

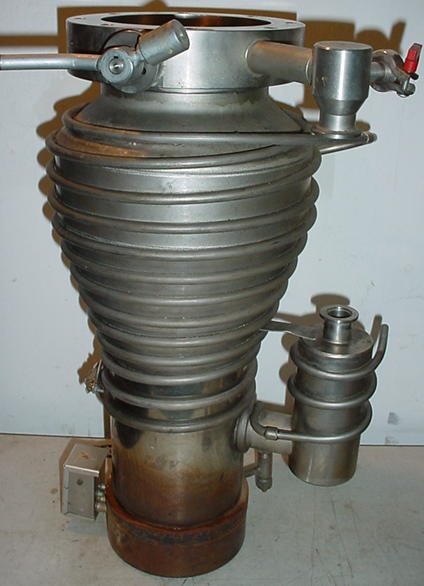

VPD594
|
Edwards
160M Diffstak ISO160 -manual. 700 l/s, 60# 110 volt heater |
$3,250
|
Innotec/TorrVac

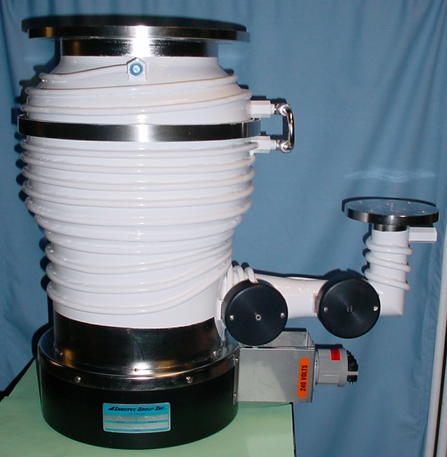

| VPD600 |
Innotec/TorrVac R620 6" ASA w/integral H2O baffle.
Picture shown with optional LN2
VBT550 |
$1,350 |
Varian

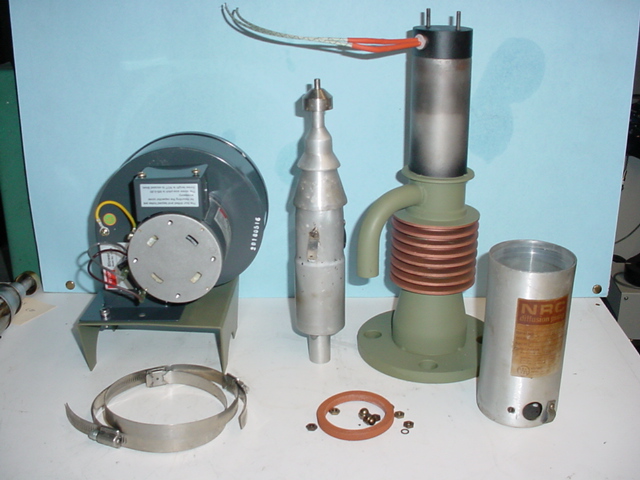

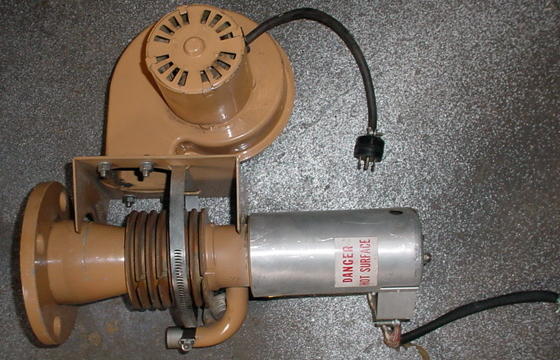

| VPD700 |
Varian HSA 2" ASA air cooled 150 l/s air,
325 watts, 16# |
$795 |

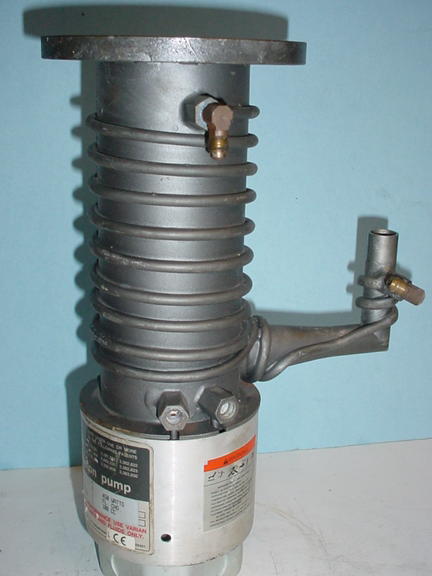

| VPD720 |
Varian M-2 2" ASA 175 l/s air, 450 watts 15# |
$875 |

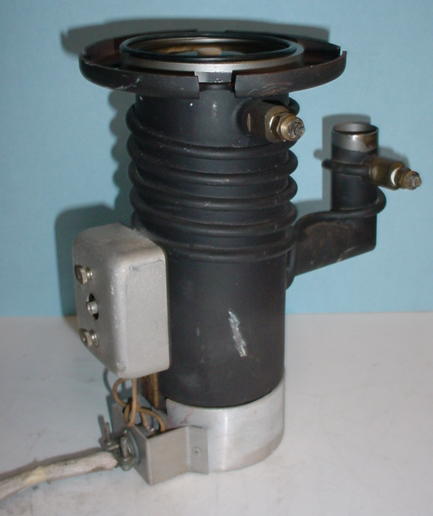

| VPD725 |
Varian HS-2 2" ASA 285 l/s air, 450 watts. 20# |
$995 |
| VPD730 |
Varian M-4 4" ASA 800 l/s air. 1,190 watts. 45# |
$1,350 |

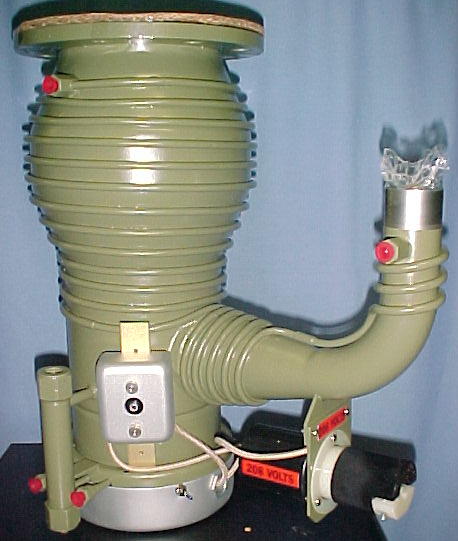

| VPD740 |
Varian VHS-4 4" ASA 1,200 l/s air. 1,450 watts 55# |
$1,650 |
| VPD760 |
Varian M-6 6" ASA 1,500 l/s air. 1,785 watts. 65# |
$1,650 |

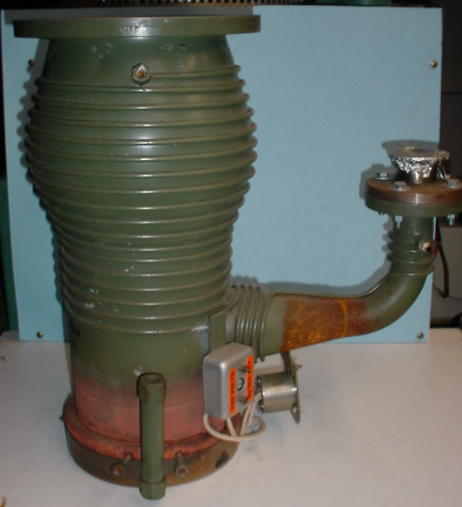

| VPD770
|
Varian VHS-6 6" ASA 2,400 l/s air. 2,200 watts. 75# |
$2,150 |
| VPD780 |
Varian VHS-250 3,700 l/s air. 2,200 watts 75# |
$3,450 |
| VPD785 |
Varian HS-10 10" ASA 4,000 l/s air, 3900 watts,
100# |
$4,250 |
|
VPD786 |
Varian HS-10 pumping stack 4,000 l/sec diffusion pump, 480/3 heaters model 0163,
326-10 long life LN2 baffle, mild steel right angle high vacuum
pneumatic valve, and both roughing and foreline valves. Valve is water traced
for vacuum furnace application. Not reconditioned |
$5,500 |
| VPD790 |
Varian VHS-10 10" ASA 5,300 l/s air. 5,100 watts. 150# |
$6,000 |
| VPD795 |
Varian HS-20 20" ASA 17,500 l/s air. 12,000 watts. 580#
subject to 2B231 CCL export controls. Two in stock |
$8,950 |
|
VPD795A |
Foreline and roughing manifold for two of the above
HS-20 pumps. Consists of 6" ASA NRC right angle valve & roughing pump
connections, and 4" ASA Temescal gate valves & foreline flanges.
41-3/8" horizontal center to center spacing.
PIX2 |
$2,950 |
| VPD796 |
Varian HS-32 38" OD flange, 32,000 l/s air. Pump
body only, NO JET. 1,400 # estimated. subject to 2B231 CCL export
controls |
POR |
| VPD797 |
Varian/NRC NHS-35 diffusion pump 41.75" OD
flange, 50,000 l/s air Subject to 2B231 CCL export
controls. We have a mating cryo baffle available for this as well,
VBT740 Not
reconditioned 2,050 # |
$9,750 |
Veeco
|
VPD800
|
EP776 6" ASA H2O traced w/short foreline
|
$1,950
|
Proteus Flow switches
|

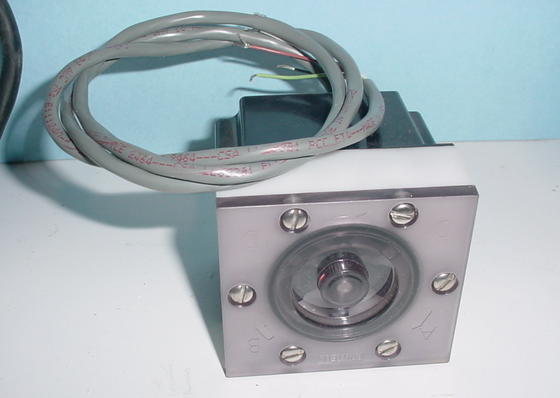

VPD900
|
100C ¼ NPT Celcon body .1-6 gpm
|
$100
|
|

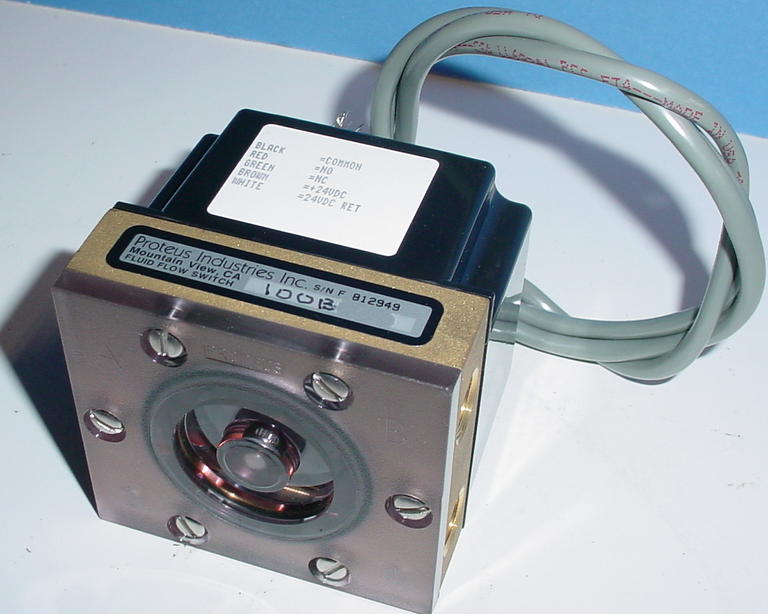

VPD905
|
100B ¼ NPT Brass body .1-6 pgm
|
$125
|
|

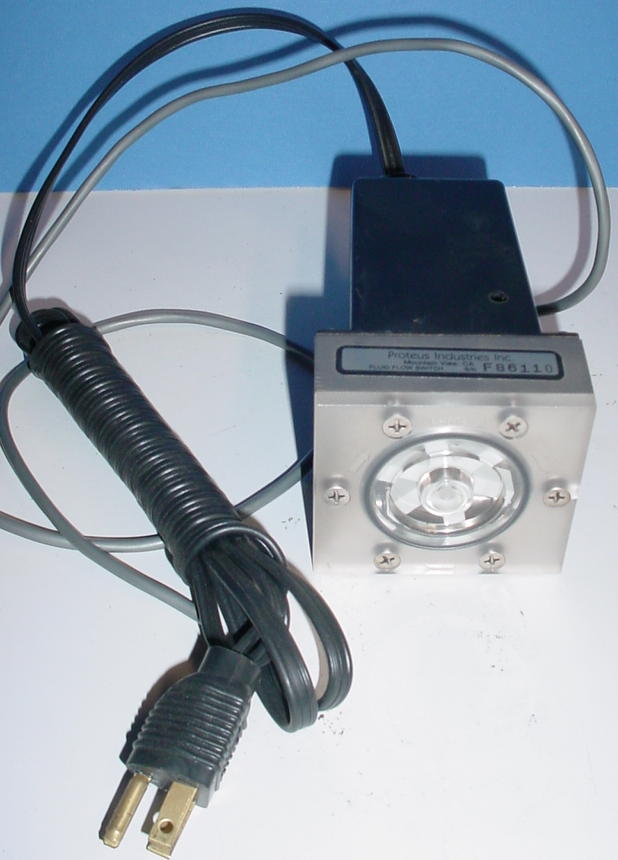

VPD910
|
150SS ½ NPT Stainless steel body 1.5-12 gpm
|
$175
|
|
|
|
|
|
|
Ring Jet Booster Pumps |
|
|
VPR500 |
Stokes Series 150 4" ring jet booster pump 610 CFM 220V
|
$1,600 |
|
VPR510 |
Stokes Series 150 6" ring jet booster pump 1850 CFM 220V
|
$3,150 |
Note:
Additional Reconditioned USED diffusion pumps are also available. Weights shown
are net, not shipping.
