ALUMINUM VACUUM GATE VALVES

E. McGrath Inc, 35 Osborne St, Salem MA  01970


VVGA090 Airco ST 2" CVC air split body $375
VVGA100 Airco ST 2" ASA air split body $400
VVGA120 Airco STM 4" manual split body manifold light flange $695
VVGA130 Airco ST 4" ASA air split body, $695
VVGA140 Airco ST 4" ASA manual split body $595
VVGA160 Airco ST 6" ASA air split body $795
VVGA180 Airco ST 6" ASA manual split body $695

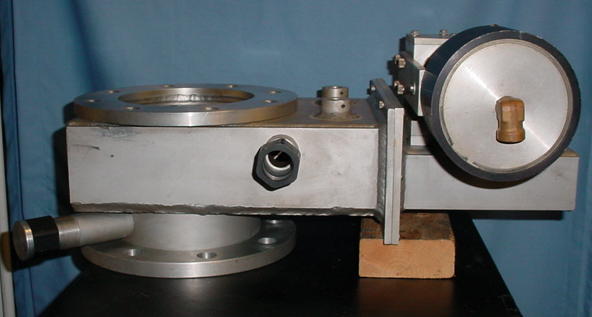

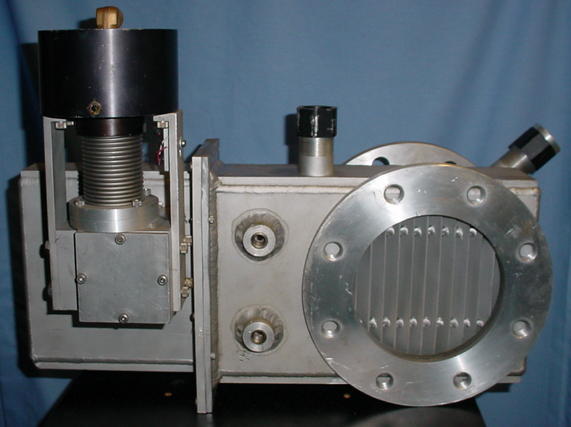

VVGA200 CPA 7814 4" ASA air with integral H2O baffle and 1 inch OD ion & roughing ports. One smooth and one oring flange.  PIX2 $995
VVGA250 CPA 8025-A 6" ASA air aluminum combination cryo trap/gate valve NEW $1,950

VVGA320 CVC VCS-22A 2" toggle CVC flange $395

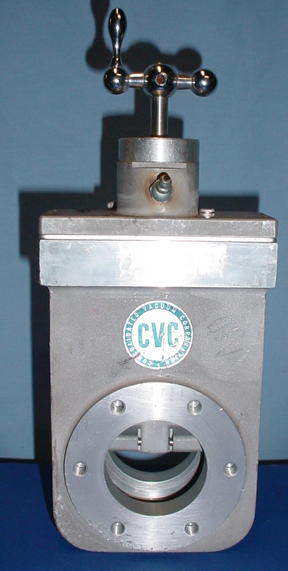

VVGA330 CVC VCS-21A 2" throttle, CVC Flange $935
VVGA340 CVC VCS-23A 2" air CVC flange $425
VVGA360 CVC VCS-41B 4" ASA manual $695
VVGA370 CVC VCS-43A 4" ASA air $745
VVGA380 CVC VCS-61B 6" ASA manual 42# $875
VVGA390 CVC VCS-63A 6" ASA air $995

VVGA400 NRC 4" ASA manual $695
VVGA420 NRC 6" ASA manual $795
VVGA450 NRC 6" ASA air $845

VVGA500 Temescal 5000 2" ASA air $500
VVGA520 Temescal 5000 3" ASA manual side lever $595

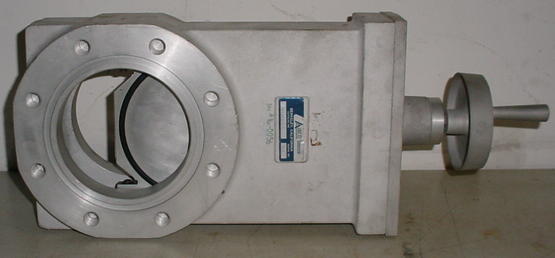

VVGA540 Temescal 5110  4" ASA hand wheel actuated $650
VVGA550 Temescal 5000 4" ASA air $745
VVGA555 Temescal 5000 4" ASA air with position indicators $845

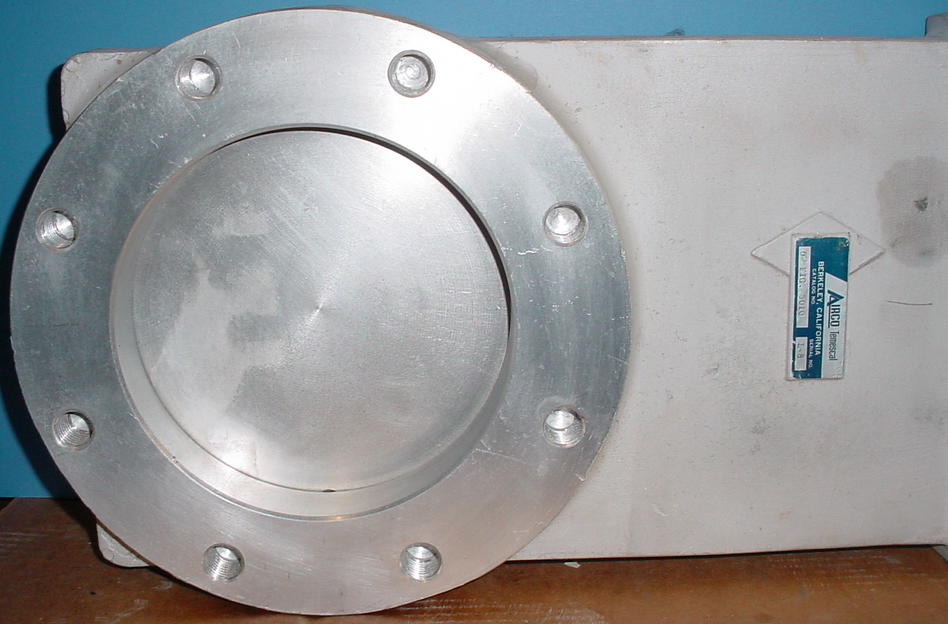

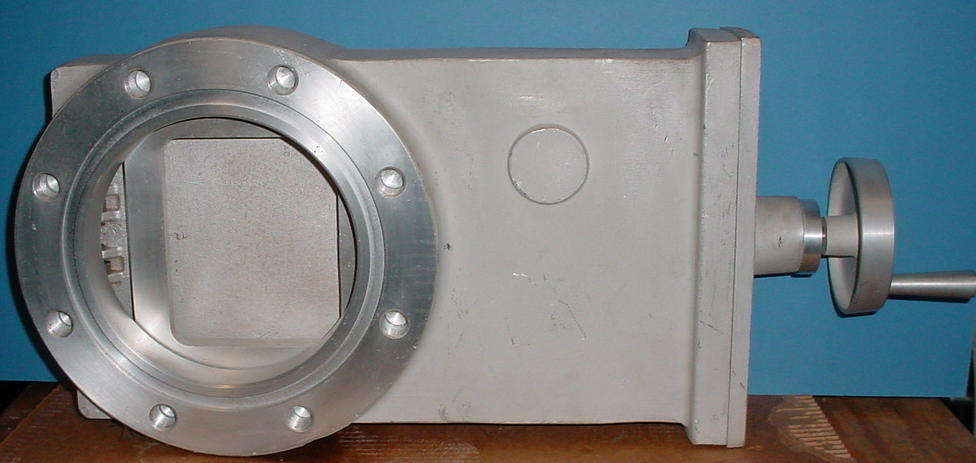

VVGA560 Temescal 5000 6" ASA air 45# net weight $1,150
VVGA570 Temescal 5000 6" ASA air side mount actuator $825
VVGA575 Temescal 5000 6" ASA manual $975

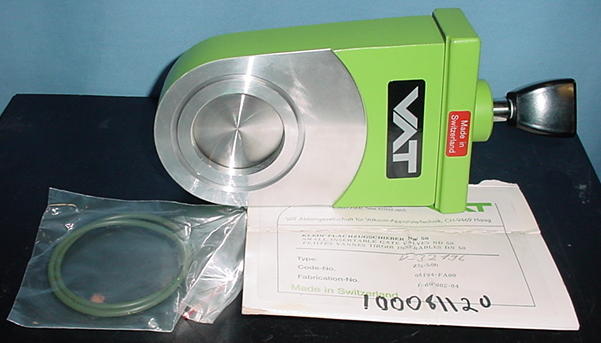

VVGA600 VAT Series 08 NW50 pushrod insertable $275
VVGA620 VAT Series 11 ISO100 air insertable $750
VVGA640 VAT Series 12 ISO63 air $650

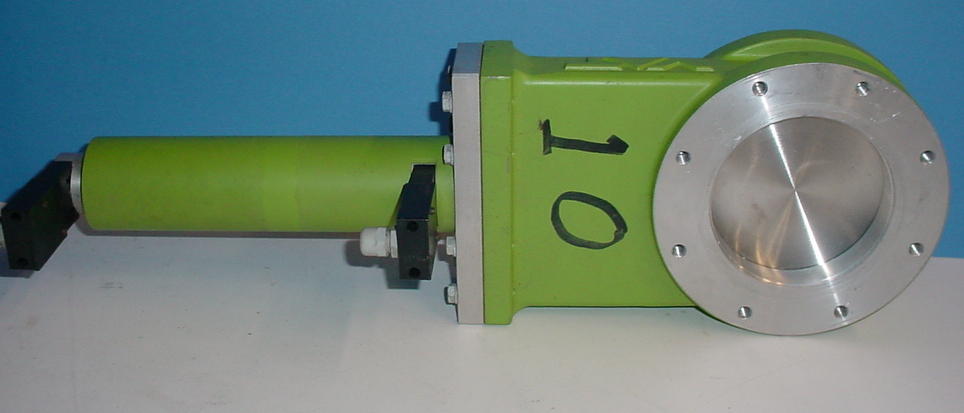

VVGA650 VAT Series 12 ISO100 air $825

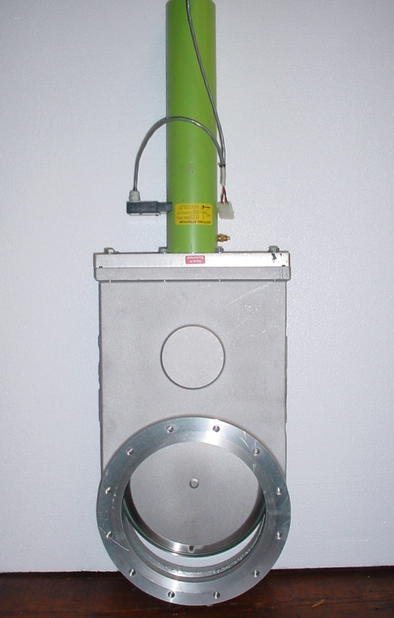

VVGA660 VAT Series 12 ISO200 air 37" overall length. 38#  2 in stock, each: $1,350
VVGA670 VAT Series 20 ISO100 air butterfly style $875
VVGA675 VAT Series 20 ISO160 air butterfly style $1,200
VVGA678 VAT Series 02 32 x 222 mm air slit style Type B 50mm thick $1,495

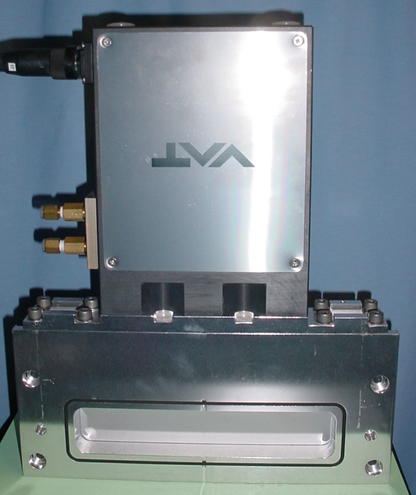

VVGA680 VAT Series 02 46 x 236 mm air slit style Type B Position sensor. 18# PIX2 $1,750
VVGA685 VAT Series 12 ISO320 air. 117# net weight. 3 available $2,950

VVGA700 VRC Standard 2" manual CVC flange $395
VVGA710 VRC Standard 2" air CVC flange $425
VVGA711 VRC Standard 2" manual Dependex $395
VVGA712 VRC Standard 2"air Dependex $425
VVGA713 VRC LP2 2" ASA manual $525
VVGA717 VRC LP2 2" ASA air $635
VVGA718 VRC LP2EOA 2" Dependex flange,  bellows sealed , air operated $825
VVGA719 VRC LP3 3" ASA air $695
VVGA720 VRC Standard 4" ASA manual split body throttle $595
VVGA722 VRC Standard 4" manual Dependex $595
VVGA724 VRC Standard 4"  air Dependex Sold
VVGA730 VRC LP4 4" ASA manual $725
VVGA740 VRC LP4 4" ASA air $845
VVGA750 VRC LP6 6" ASA manual $975
VVGA760 VRC LP6 6" ASA air $1,050

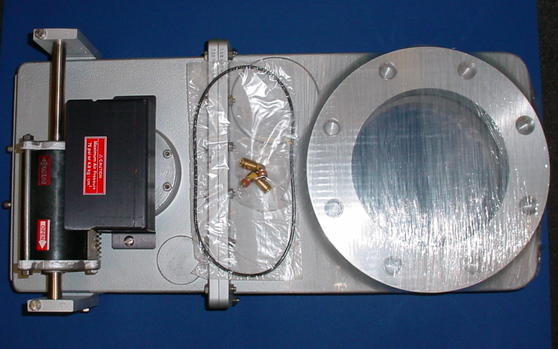

VVGA761 VRC LP6 6" ASA air operated, O-ring one side.   sold
VVGA790 VRC Standard 12" ASA manual split body $1,850

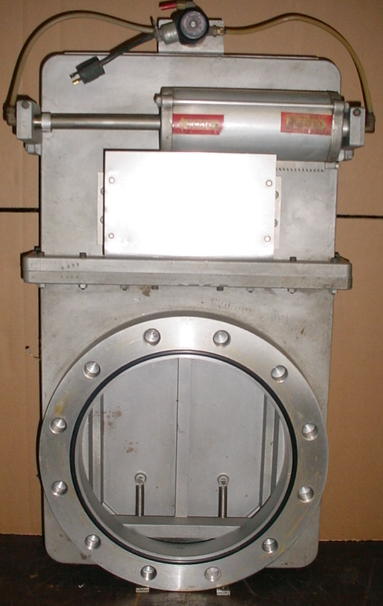

VVGA795 VRC LP10 10" ASA Air operated.  O-rings both sides 109# $2,150
VVGA796 VRC LP10 10" ASA manual $1,950
