Product Catalog

USED HIGH VACUUM CHAMBERS & TANKS


(Click images for larger view)

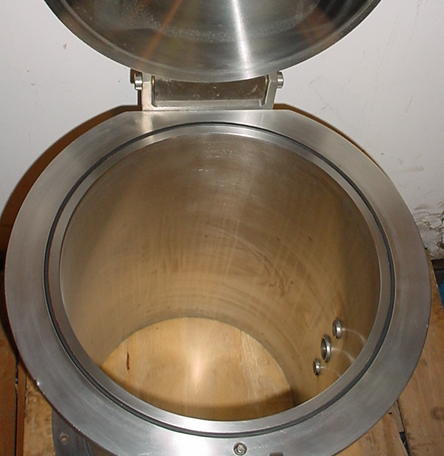

15″ ID x 24″ long custom ss vacuum chamber

#VTC110

15″ ID x 24″ long custom ss vacuum chamber, with a heavy duty o-ring sealed door on one end, and a smooth flange, 20″ OD on the open opposite end.  It has two 1/2 NPT and one 1″ NPT fittings. The wall thickness is 1/4 inch. T handle screw closer. This could handle 1 or two psi, as well as vacuum, but it is not code rated

$1,625

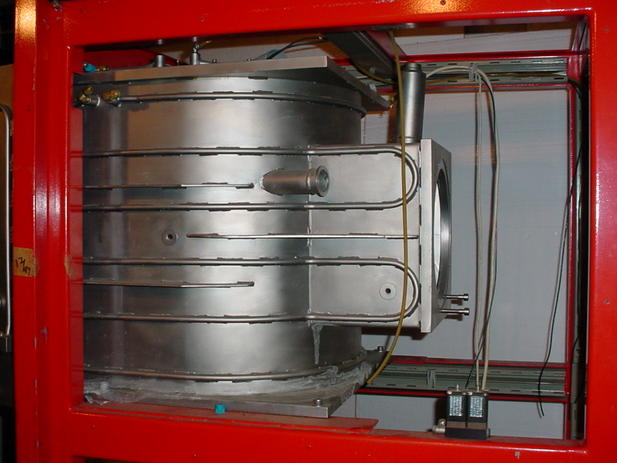

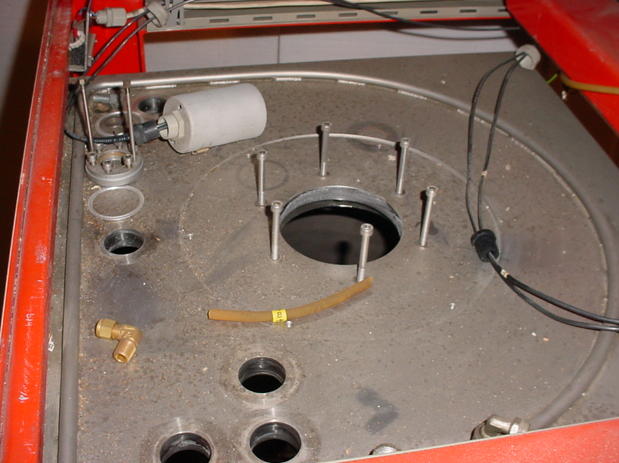

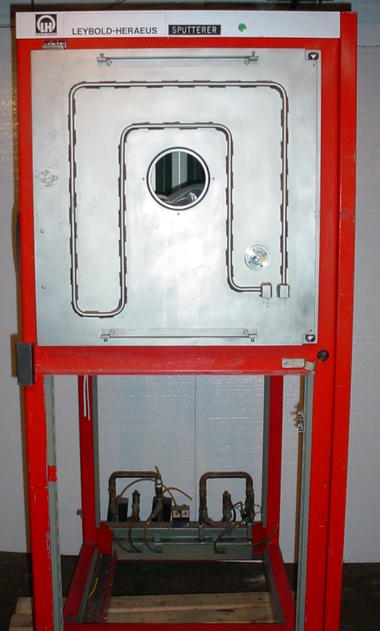

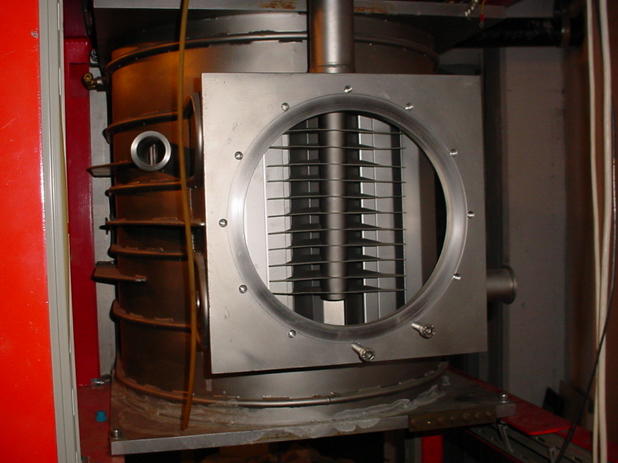

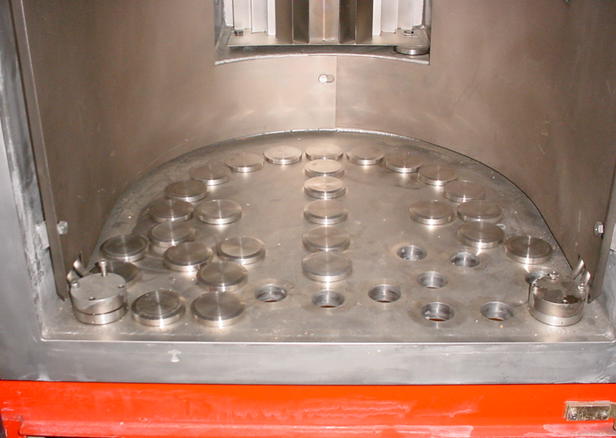

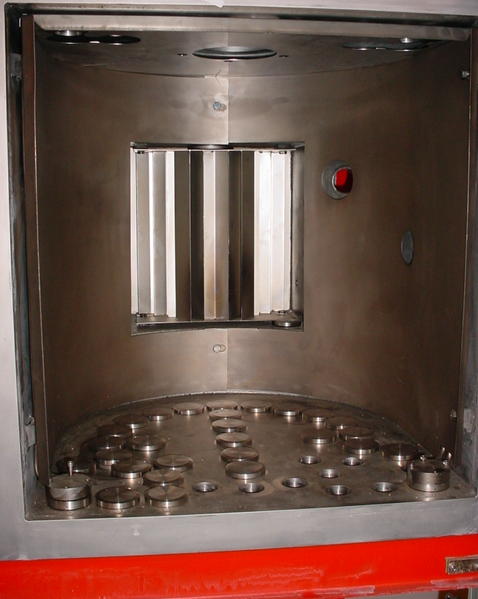

Leybold L560 box

#VTC115

Leybold L560 box, 21.5″w x 22.5″h x 21″ deep, stainless steel chamber is dished at the rear, and has a ISO 250 pumping port. There are numerous 34mm baseplate feedthrough holes on the bottom and various ones on the top

New Arrival

New Arrival

$5,250

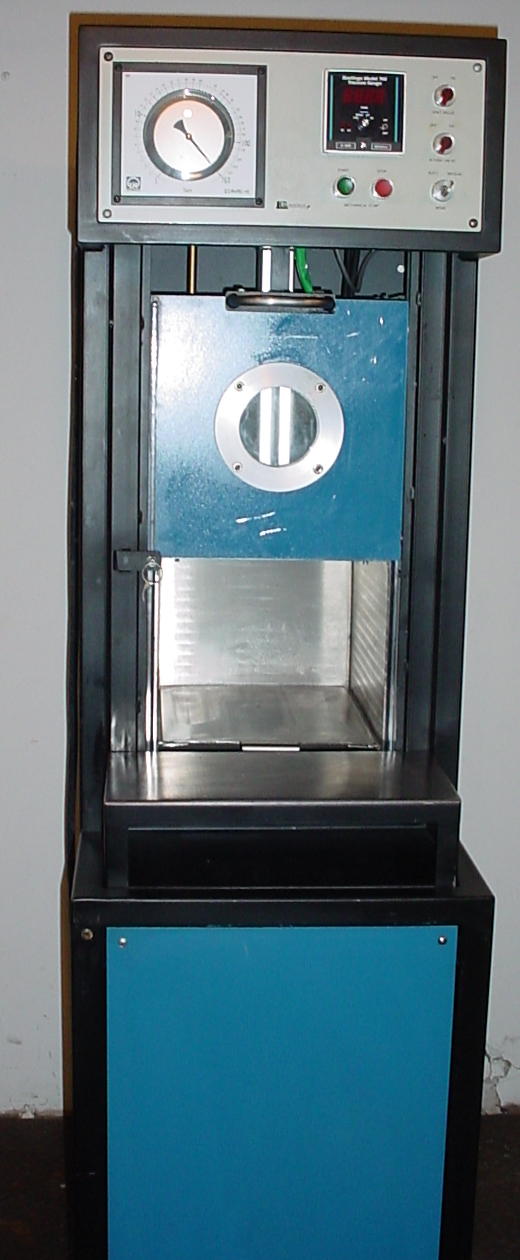

12″ tall x 12″ wide x 15″ deep ss Leo Engineering Vacuum Degas

#VTC220

12″ tall x 12″ wide x 15″ deep ss Leo Engineering Vacuum  Degas and Impregnation system. Chamber has front opening pneumatically assisted sliding aluminum “O” ring sealed door w/a 4″ ID viewport. The process chamber has both a 0-760 mm Hg diaphragm gauge and a 0-760 mm Hg electronic gauge w/set point. All interconnect valving is electro pneumatic and operation of the system is semi-automatic. A 14 CFM direct drive mechanical pump is also included. All components are enclosed in a sturdy compact roll around chassis with overall dimensions of 74″ tall x 20″ wide x 30″ deep

$4,950

Balzers box BAK-600 vacuum box chamber

#VTC225

Balzers box BAK-600  vacuum box chamber 25.5″ wide x 27.5″ deep x 27.5″ high. Built in poppet valve. With ISO 320 to ISO 250 Adaptor  plate

Sold

Sold
