Product Catalog
Unitek Miyachi Welding Handpieces
(Click images for larger view)
|

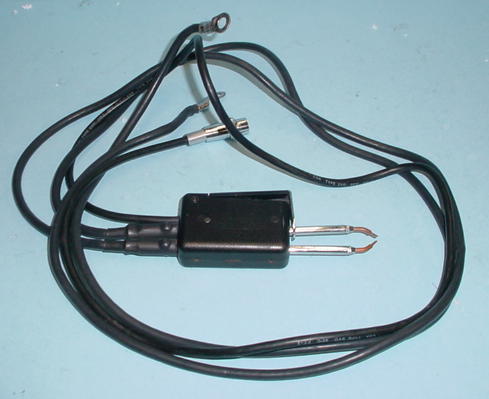

Unitek Miyachi THP Tweezers |
#WE2617 |
Unitek Miyachi THP tweezers hand piece, 4 feet long, ring terminals or1/4″ male |
$875 |
|

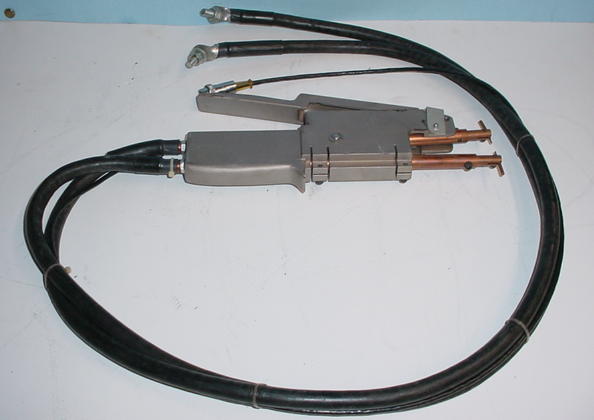

Unitek Miyachi HFT 5-019 |
#WE2617B |
Unitek Miyachi HFT 5-019 heavy duty handpiece 500 watt seconds, 1 to 25 pounds force. 4 foot cables SOLD |
|
|

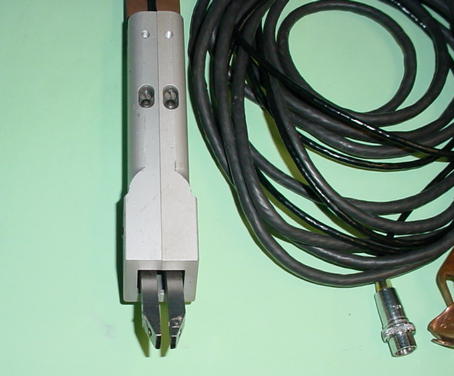

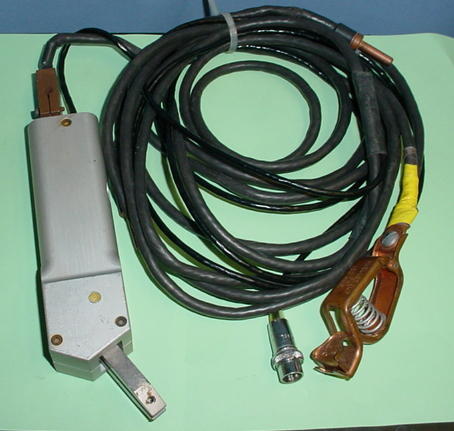

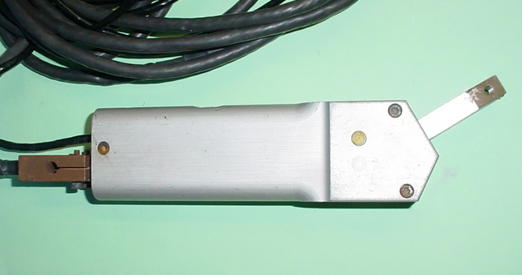

Unitek HP2 Series Hand Piece |
#WE2617C |
Unitek HP2 series hand piece, 500 watt seconds, 7.5 KVA missing electrode holders. |
$495 |
|

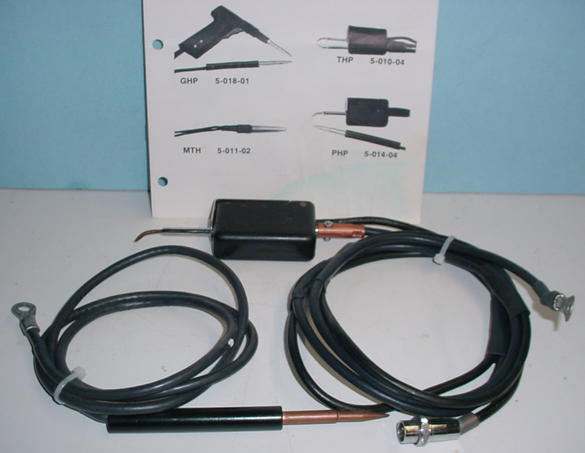

Unitek PHP Single Handpiece – 4′ Cable |
#WE2617F |
Unitek PHP single handpiece, 4′ cable, ring tongue, & pencil ground cable. |
$775 |
|

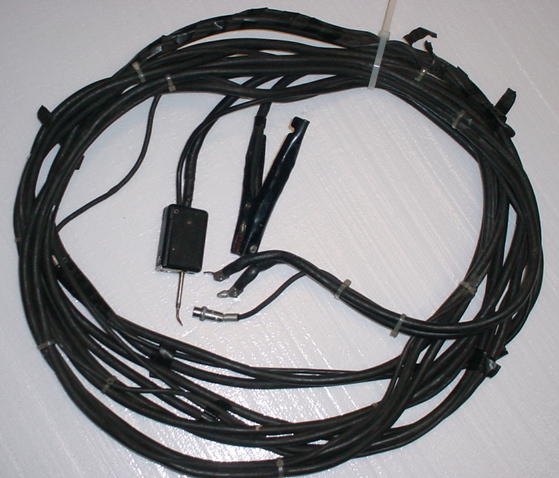

Unitek PHP Single Handpiece – 25′ Cables |
#WE2617FL |
Unitek PHP single handpiece with 25′ cables, 2 AWG ring tongue terminals |
$925 |
|

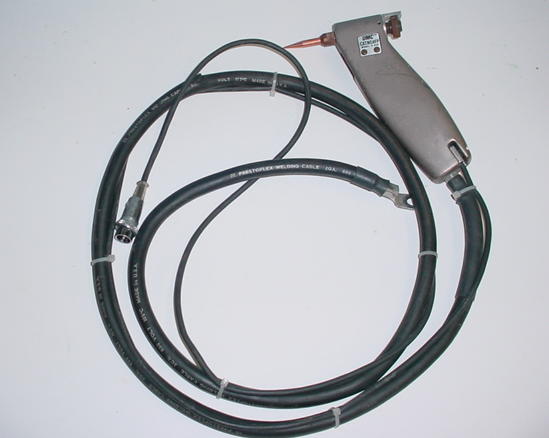

Unitek HFP High Force Probe |
#WE2617G |
Unitek HFP high force probe handpiece 500 wt-sec, 3 to 25 pound force. SOLD |
|
|

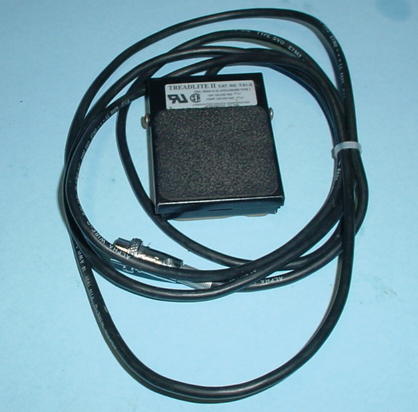

Unitek FS foot switch |
#WE2617H |
Unitek FS foot switch, 2 pin connector |
$75 |
|

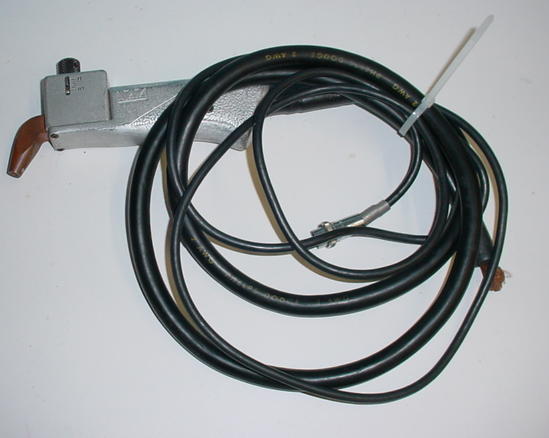

Unitek HDP 5-015-01 |
#WE2617K |
Unitek HDP 5-015-01 heavy duty probe handpiece 500 wt-sec 1 to 25 # force. |
$825 |
|

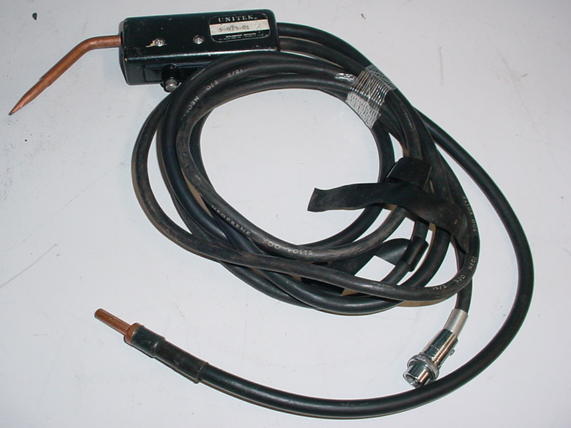

Unitek 5-013-01 probe |
#WE2617L |
Unitek 5-013-01 probe hand piece with manual trigger, 1/4″ male New Arrival |
$495 |
|

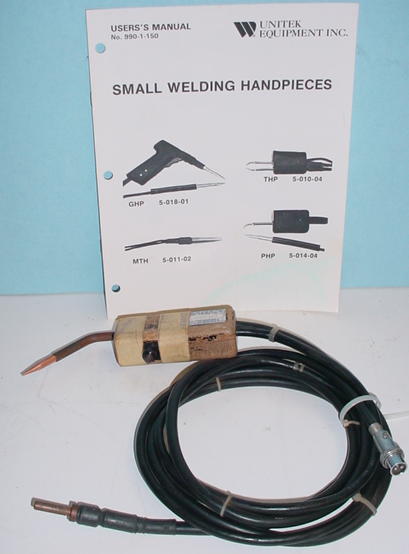

Unitek HP3000 light duty probe |
#WE2617M |
Unitek HP3000 light duty probe hand piece, 100 wt-sec with manual trigger |
$475 |
|
Unitek MTH light force tweezers |
#WE2617N |
Unitek MTH light force tweezers with FS foot switch |
$625 |
|

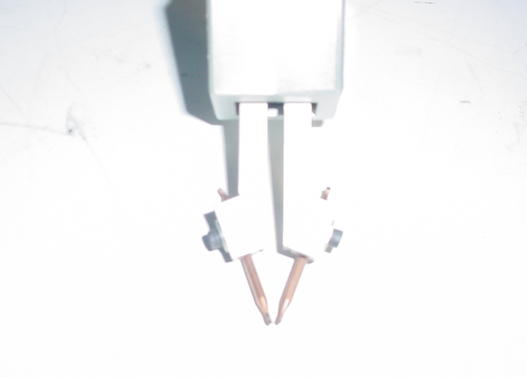

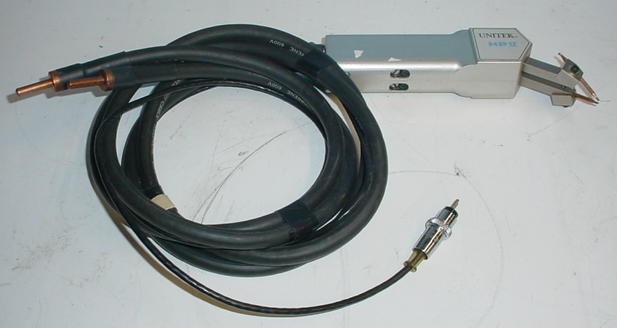

Unitek HP-II parallel handpiece |
#WE2617P |
Unitek HP-II parallel handpiece, useful for battery tabbing |
$1,075 |
|

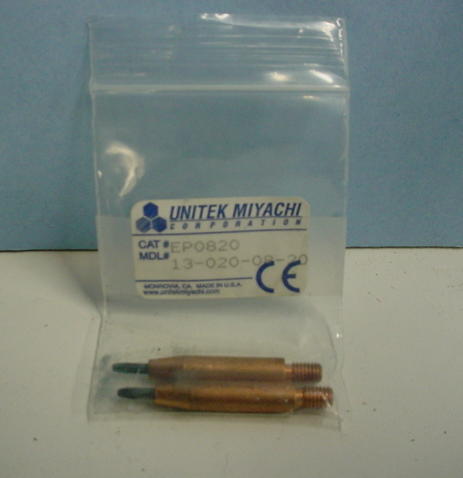

Miyachi Unitek EP0820 |
#WE2617Q |
Miyachi Unitek EP0820 13-020-08-20, moly tipped 1/4″ electrode pairs, fits GHP and HDP handpieces. New Surplus |
$90 |
|
Unitek Peco model 72 dual weld |
#WE2619 |
Unitek Peco model 72 dual weld head controller 2-240-02 New Arrival |
$2,475 |
|

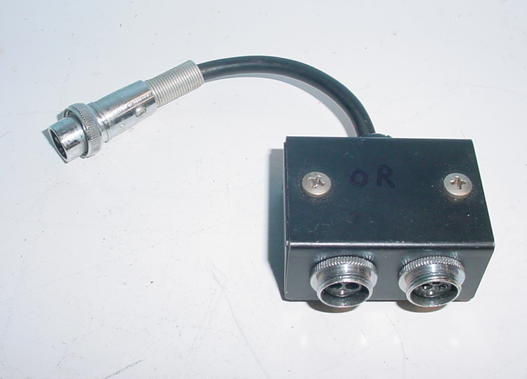

Unitek Miyachi DFS |
#WE2620 |
Unitek Miyachi DFS allows the use of two weld heads |
$130 |
|

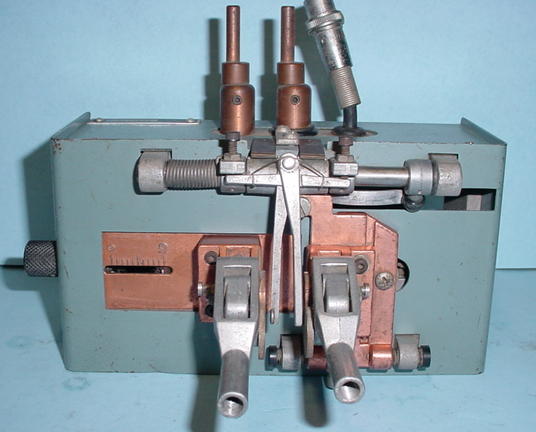

Unitek 1040 precision butt welding |
#WE2621 |
Unitek 1040 precision butt welding head, 4 ozs to 10 #, 100 watt seconds. |
$1,125 |
|

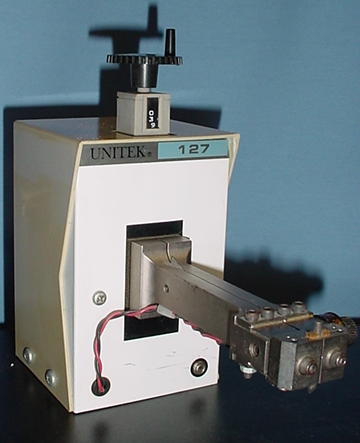

Unitek 127F parallel gap head |
#WE2622 |
Unitek 127F parallel gap head, takes 1/8″ square tips |
$1,150 |
|

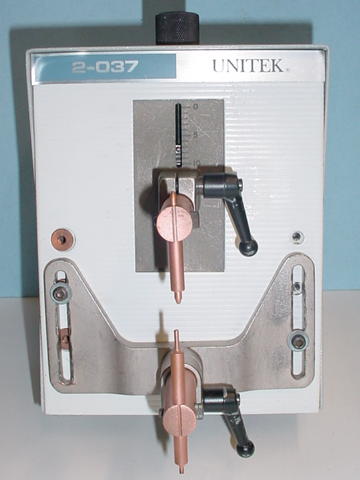

Unitek 2-037 weld head |
#WE2626 |
Unitek 2-037 weld head, 500 wt-sec, 50# force, 1/4″ female |
$1,350 |
|

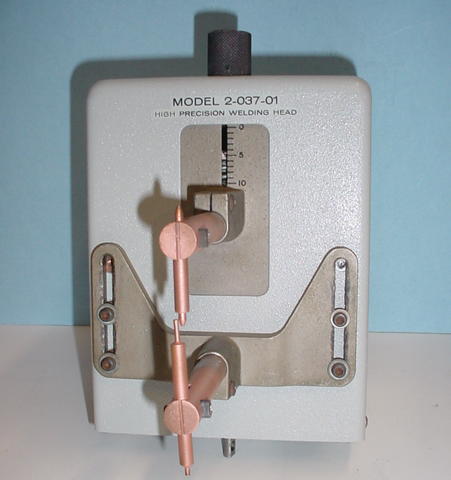

Unitek 2-037-01 weld head |
#WE2626A |
Unitek 2-037-01 weld head, 500 wt-sec, 50# force, 1/4″ female connections. |
$1,275 |
|

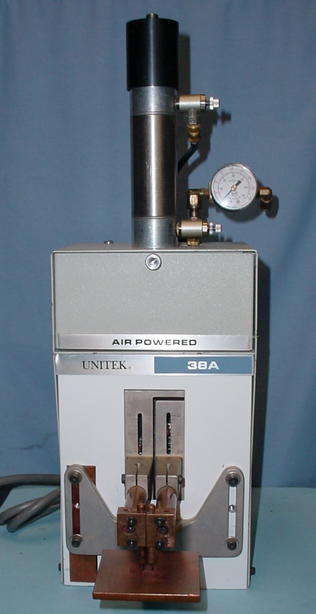

Unitek 38A series parallel head |
#WE2627 |
Unitek 38A series parallel head, 2-138-07, useful for battery tabbing. Air operated, 115 volt solenoid. 50# force. Buss bar connections. |
$2,050 |
|

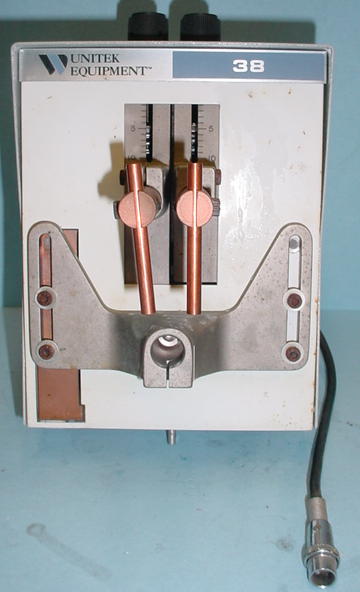

Unitek 38F series parallel head |
#WE2628 |
Unitek 38F series parallel head, 2-038-04. 50# force. ring connections |
$1,625 |
|

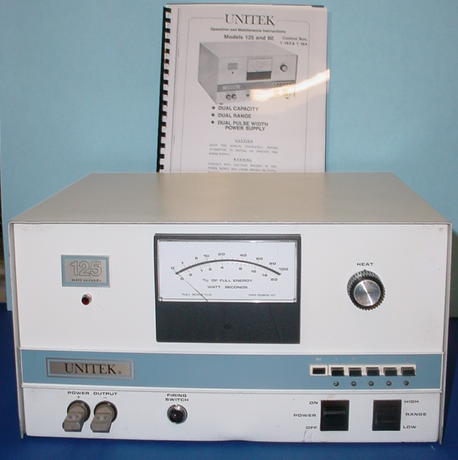

Unitek 125 – Welding power supply, buss bar output |
#WE2629 |
Unitek 125, 1-163-03, 125 wt-sec welding power supply, buss bar output connections 115/230 volts, now wired for 115. |
$1,850 |
|

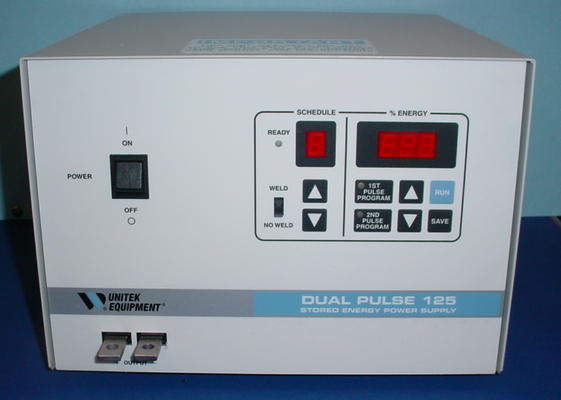

Unitek Miyachi 125DP – Dual Pulse |
#WE2629A |
Unitek Miyachi 125DP, 1-199-03 125 wt-sec dual pulse welding power supply, 115/230 volts, now wired for 115 volts. CE Rated |
$3,300 |
|

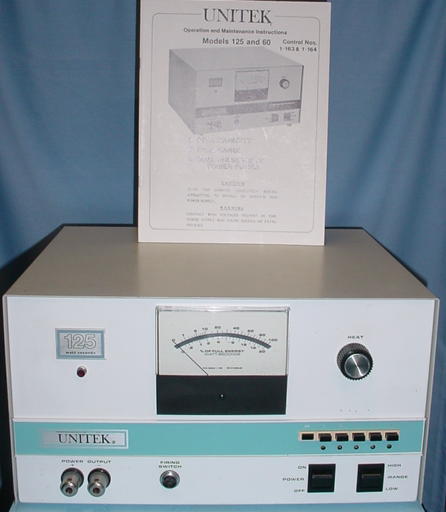

Unitek 125 – 1/4″ female output |
#WE2629B |
Unitek 125, 1-163-01, 125 wt-sec welding power supply, 1/4″ female output connections 115/230 volts, now wired for 115. |
$1,750 |
|

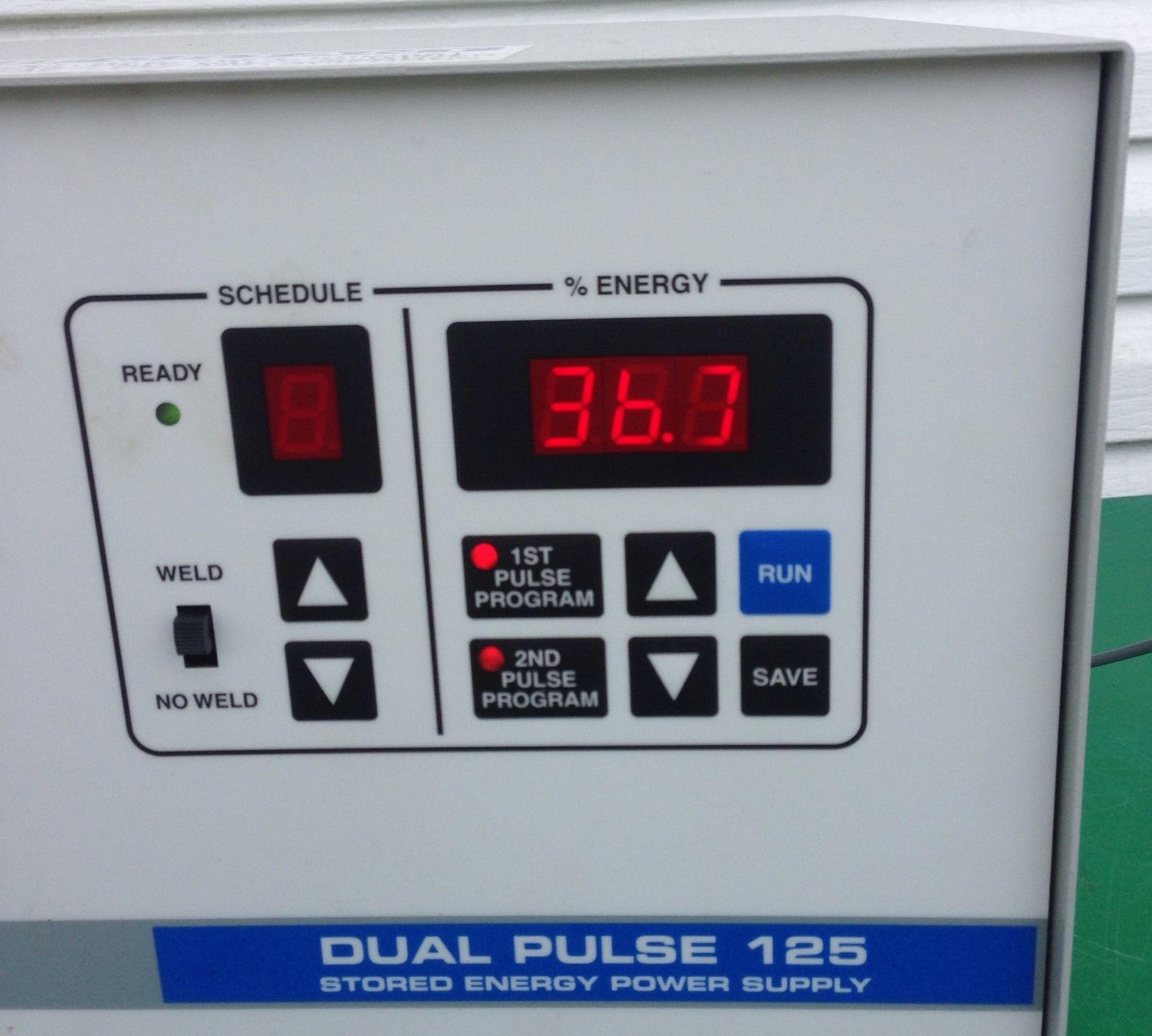

Unitek Miyachi Amada 125DP |
#WE2629C |
3 Years Old, As-New Condition Unitek Miyachi Amada 125DP, 1-199-03 125 wt-sec dual pulse welding power supply, 115/230 volts, now wired for 115 volts. CE rated.
3 Years Old Only |
$4,300 |
|

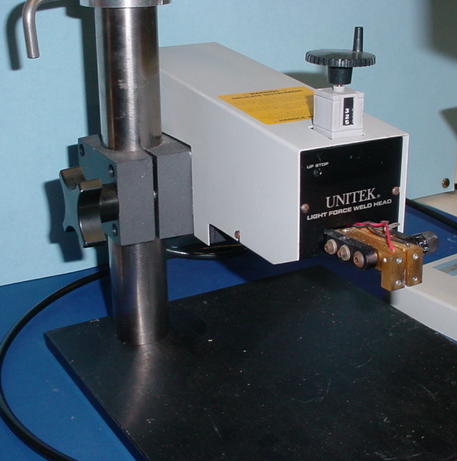

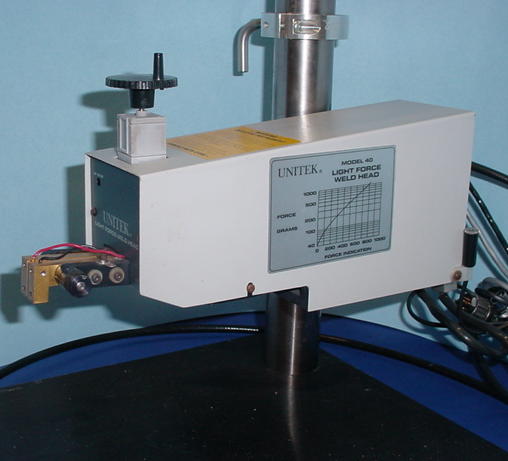

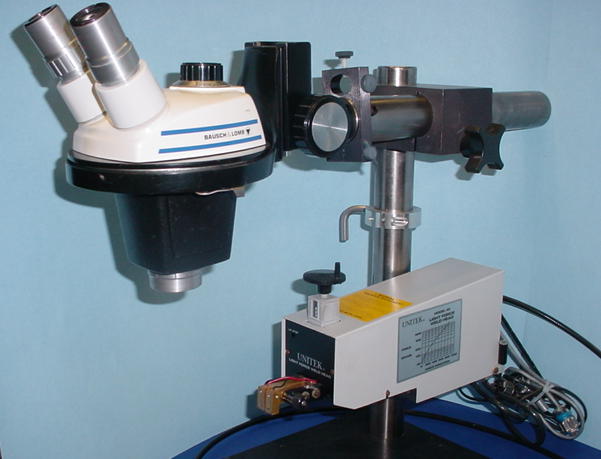

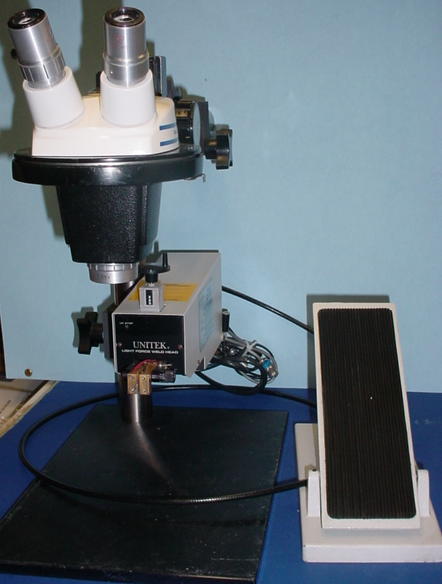

Unitek reflow soldering/welding system |
#WE2630A |
Unitek reflow soldering/welding system: Unitek PMIV, Unitek light force 46F Thinline head with cable foot pedal, Bausch & Lomb Stereozoom 4 microscope with 10X eyepieces and .5X supplemental lens for 7� focal distance. |
$4,950 |
|

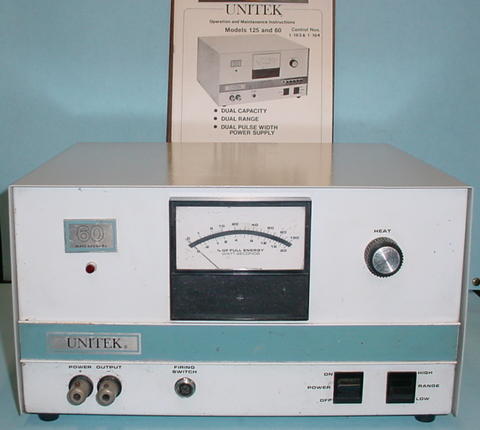

Unitek 60, 1-164-01 |
#WE2631 |
Unitek 60, 1-164-01 60 watt second capacitor discharge power supply, analog. 115/230; now wired for 115 volts. 1/4″ female connection. |
$1,350 |
|

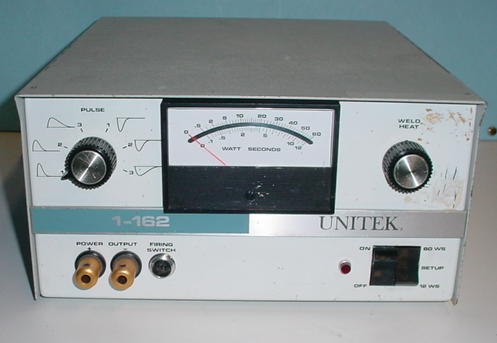

Unitek 1-162 – Analog supply |
#WE2632 |
Unitek 1-162, 60 watt second analog supply, 1/4″ female output. 115v |
$775 |
|

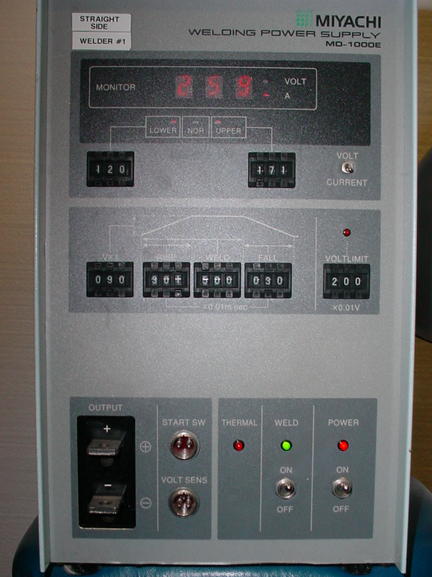

Miyachi Technos MD-1000E |
#WE2634 |
Miyachi Technos MD-1000E linear transistor supply, 200 to 1000 amps, constant power, one pulse, with up & down slope. Current or voltage feedback. .5 to 4.99 ms. Output monitor. 120 volts. |
$3,150 |
|

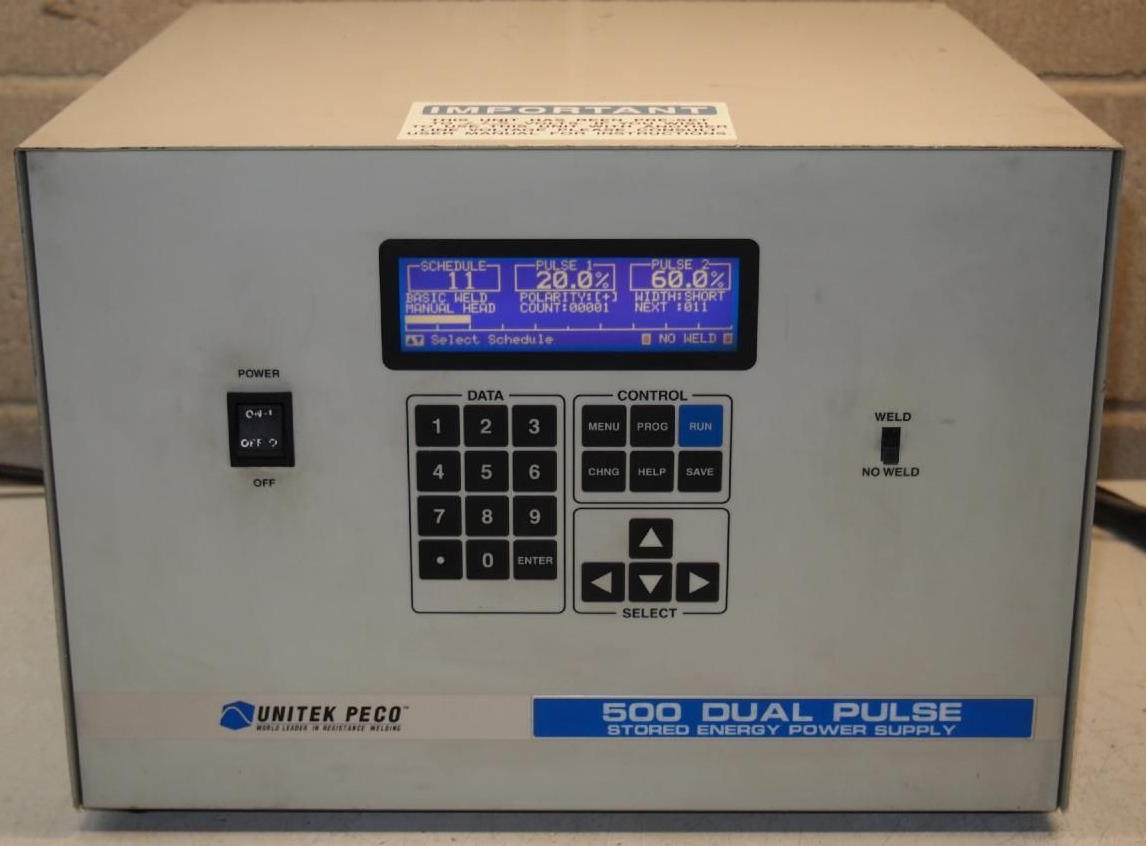

Unitek Miyachi 500HV |
#WE2648 |
Unitek Miyachi 500HV 1-252-03 500 watt second supply, dual pulse, with external pulse transformer (78#). Higher output voltage than 500DP: 14.6 to 19 volt into a .004 ohm load SOLD |
|
|

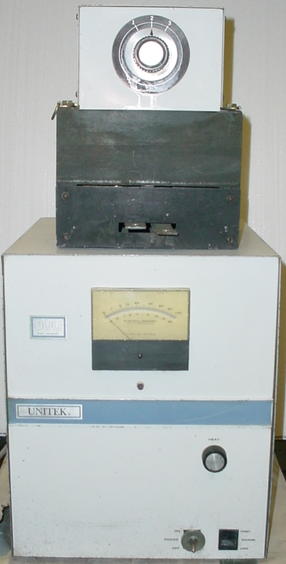

Unitek 500; 1-188-01 |
#WE2649 |
Unitek 500; 1-188-01 500 watt second supply with external pulse transformer. 115 volt input. File Photo. |
$4,750 |
|

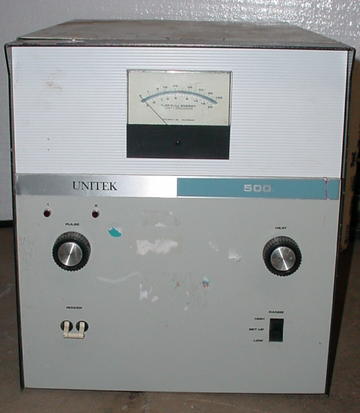

Unitek 500; 1-188-03 |
#WE2650 |
Unitek 500; 1-188-03 500 watt second welding supply. External pulse transformer not included (7 pin Amp connector) Untested. |
$500 |
|

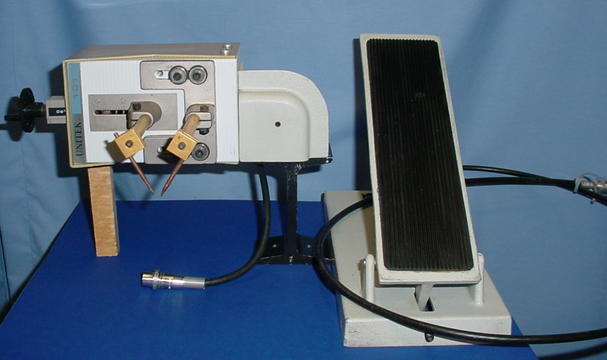

Unitek 101 miniature welding head |
#WE2651 |
Unitek 101 miniature welding head with 90� fixture for horizontal welding and CP foot pedal. |
$1,050 |
|

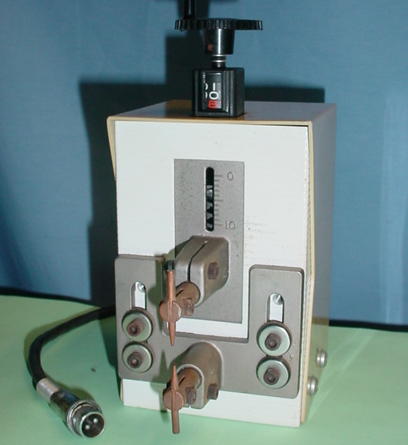

Unitek 2-101-01 miniature welding head |
#WE2654 |
Unitek 2-101-01 miniature welding head, 100 watt-second maximum |
$825 |
|

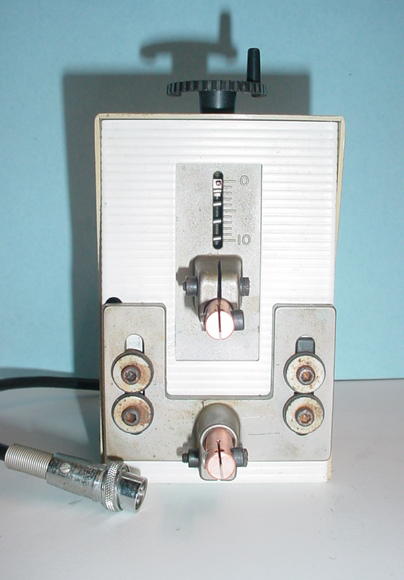

Unitek 2-032-03 miniature welding head |
#WE2655 |
Unitek 2-032-03 miniature welding head, 100 watt-second 8oz to 15# |
$825 |
|

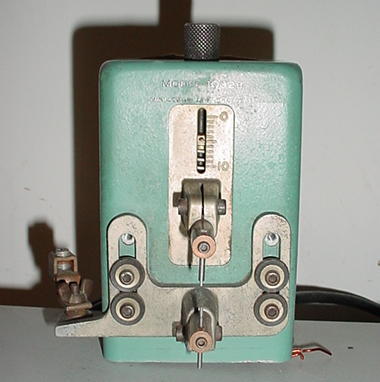

Unitek 1032B miniature welding head |
#WE2656 |
Unitek 1032B miniature welding head. 100 watt-second maximum |
$625 |
|

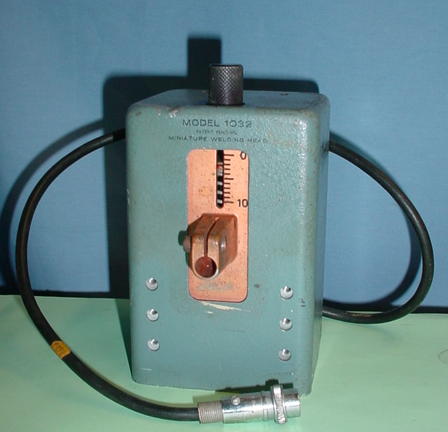

Unitek 1032B miniature welding head |
#WE2656A |
Unitek 1032B miniature welding head, without lower electrode assembly |
$525 |
|

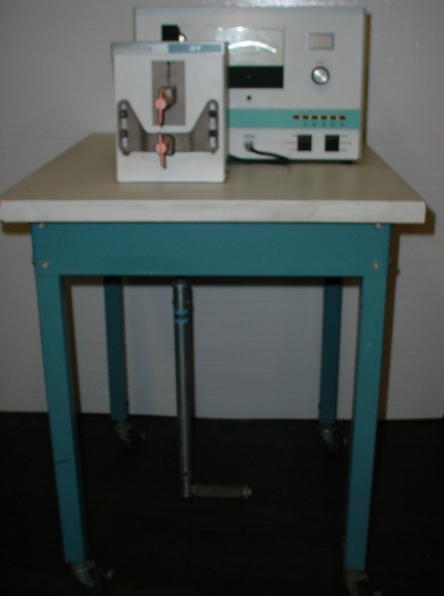

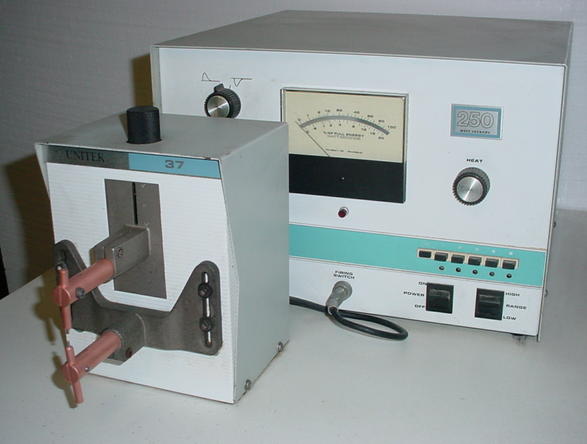

Unitek 250 welding system |
#WE2659 |
Unitek 250 welding system: 250 analog supply 1-180-01, 37F head with MSP foot pedal on bench with casters. |
$4,250 |
|

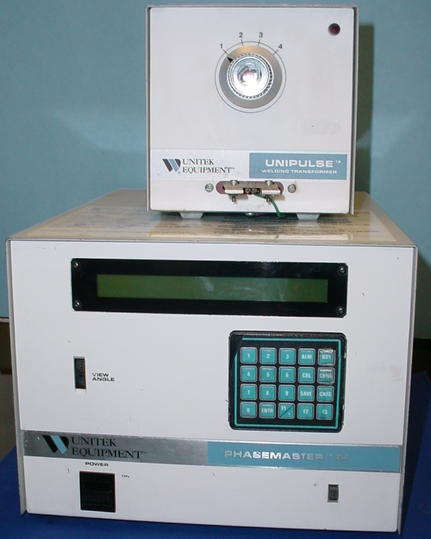

Unitek Phasemaster IV PM4A |
#WE2660 |
Unitek Phasemaster IV PM4A, 1-230-04 with X2/115RF 2 kva transformer, with thermocouple input. Designed for solder reflow applications. 115 volts, 50/60 hz. Control 24#, transformer 25# |
$3,250 |
|

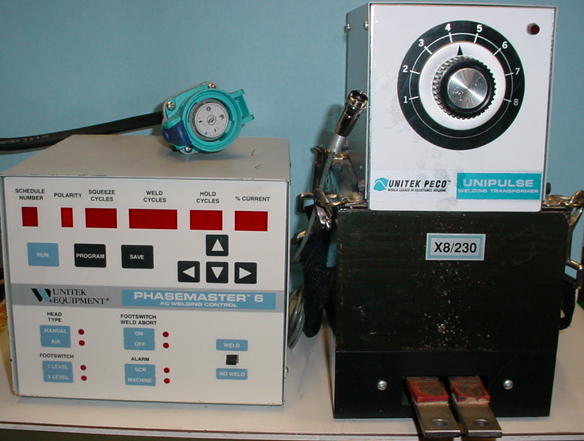

Unitek Miyachi Phasemaster 6 |
#WE2661 |
Unitek Miyachi Phasemaster 6, PM6, 1-237-03 AC microprocessor AC controller with X8/230 9-002-02 transformer, 230/60/50/1 |
$3,650 |
|

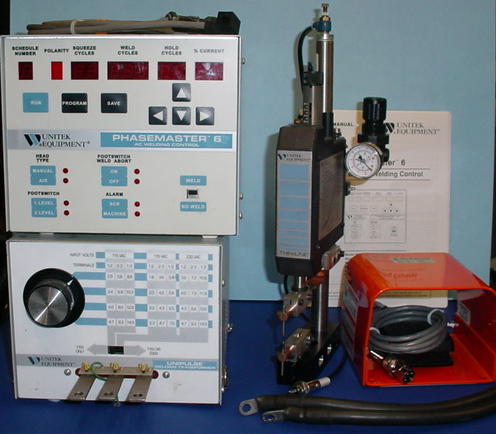

Unitek Miyachi Phasemaster 6 |
#WE2662 |
Unitek Miyachi Phasemaster 6 with X2/230 volt transformer, 80A head and foot switch. 230 volt input. Available with 80F head and CP |
$4,950 |
|

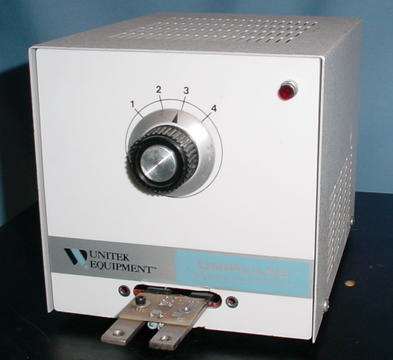

Unitek Miyachi X2/115RF |
#WE2663 |
Unitek Miyachi X2/115RF Unipulse transformer 9-020-01, 1 to 3.8 volts out in 4 steps. 24# |
$625 |
|

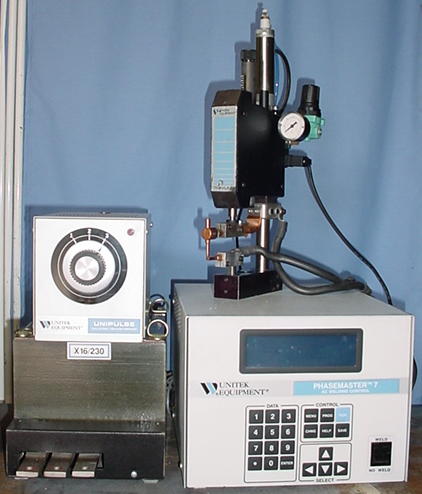

16 KVA Welding System – 84A/24 Thinline |
#WE2664 |
Unitek Miyachi 16 KVA welding system Phasemaster PM7/230, 1-239-06 with X16/230 9-004-02 transformer and Unitek 84A/24 Thinline air operated welding head. 40# force, 1/4″ electrodes Transformer weight, 94# |
$6,250 |
|

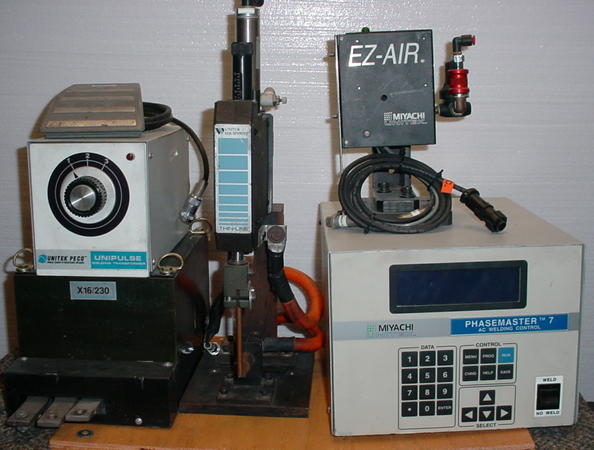

16 KVA Welding System – 82AS/ EZ Thinline |
#WE2664A |
Unitek Miyachi 16 KVA welding system Phasemaster PM7/230, 1-239-06 with X16/230 9-004-02 transformer and Unitek 82AS/ EZ Thinline air operated welding head. 40# force, 1/4″ electrodes Transformer weight, 94# |
$6,950 |
|

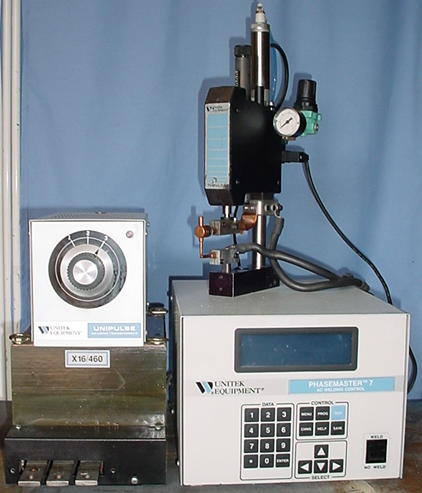

16 KVA Welding System – PM7/460 |
#WE2665 |
Unitek Miyachi 16 KVA welding system Phasemaster PM7/460 , 1-240-06 with X16/460 9-007-02 transformer and Unitek 84A/24 Thinline air operated welding head.40# force, 1/4″ electrodes Transformer weight, 94# |
$5,750 |
|

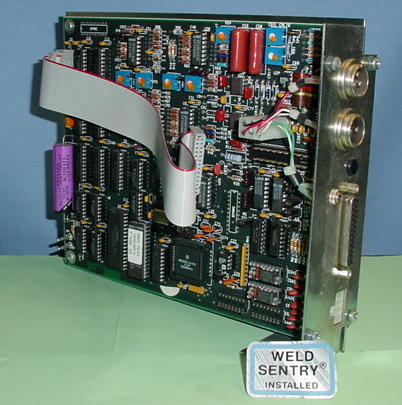

Unitek Miyachi Weld Sentry board |
#WE2667 |
Unitek Miyachi Weld Sentry board, fits 250DP and Phasemaster series 7 controls. RS232 |
$1,050 |
|

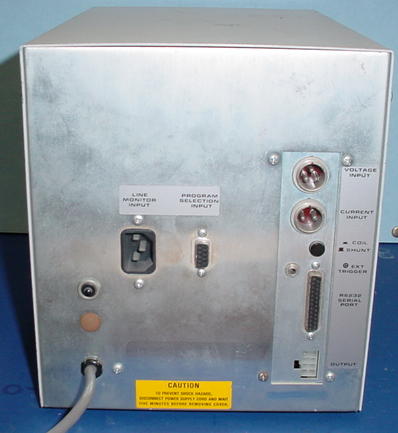

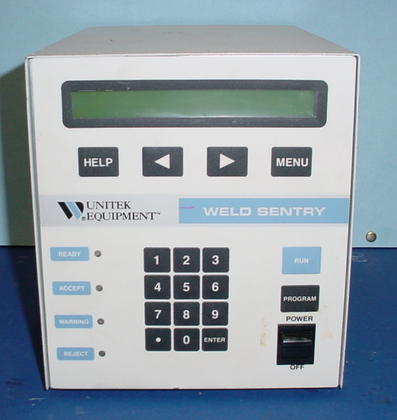

Unitek WS Weld Sentry |
#WE2667A |
Unitek WS Weld Sentry, 3-131-01. 115 volts |
$1,050 |
|

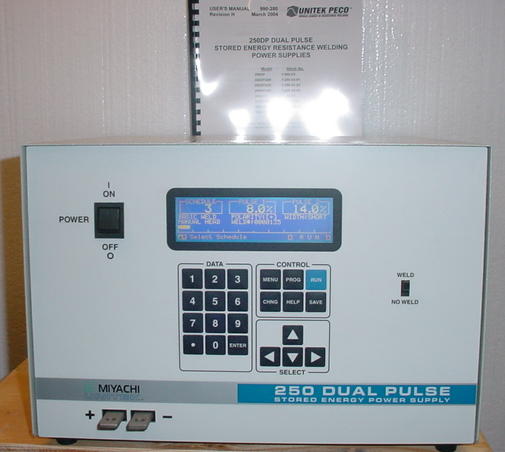

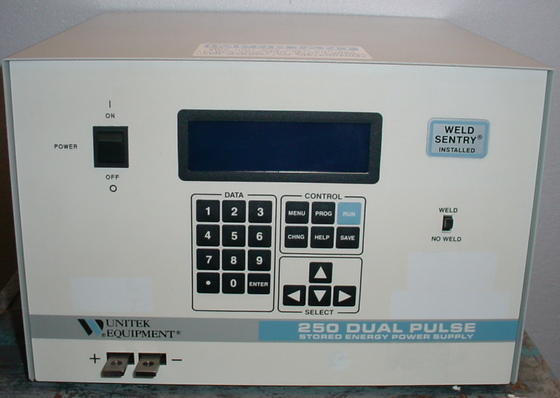

Dual Pulse 250DP Welding Supply |
#WE2668 |
Unitek Miyachi Dual Pulse 250DP welding supply, 6700 amp max output. 1-250-02, 120 volts. 50/60 hertz. 100 pound net weight. (Add $950 for Weld Sentry option 250DPS 1-254-02) |
$4,450 |
|

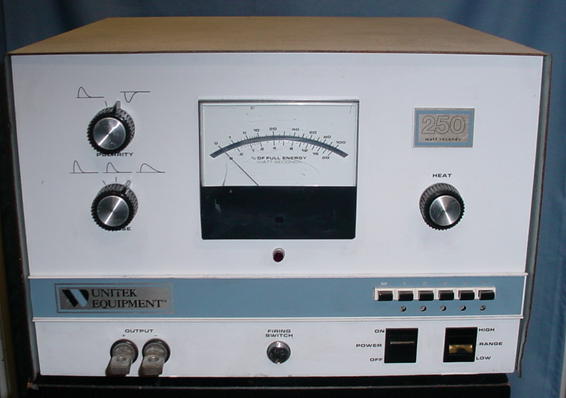

Unitek 250, 1-180-02 |
#WE2668A |
Unitek 250, 1-180-02, 250 watt second welding supply, analog readout. Bus bar output connections 115 volts |
$2,375 |
|

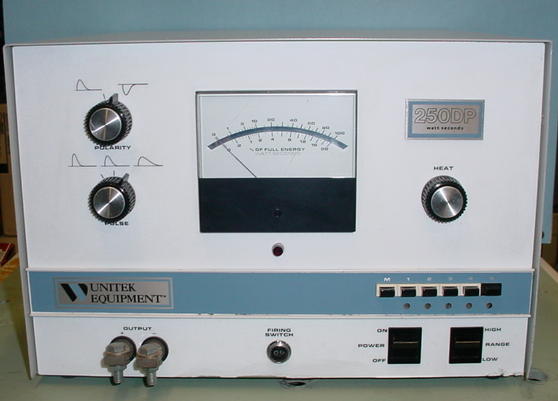

Unitek 250 Dual pulse |
#WE2668B |
Unitek 250 Dual pulse, 250 watt second welding supply, analog readout. Bus bar output connections 115 volts |
$2,675 |
|

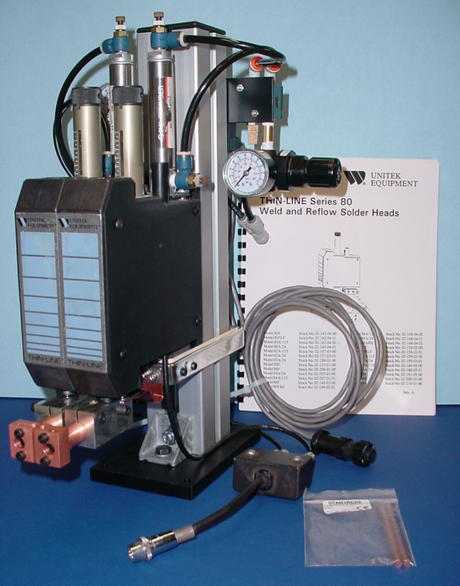

Unitek Miyachi Thinline 88A/24 |
#WE2669 |
Unitek Miyachi Thinline 88A/24 2-160-05-01 air operated series head, 1/4″ eccentric electrodes. Ideal for battery tabbing. 20# force, 24v solenoid. 2 KVA/250 wt-sec rating. 18# net weight. |
$3,450 |
|

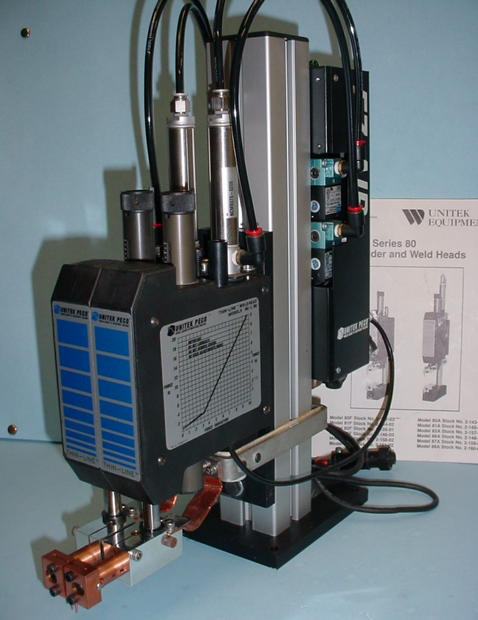

Unitek Miyachi Thinline 88A/EZ |
#WE2669A |
Unitek Miyachi Thinline 88A/EZ air operated series head,2-160-06 1/4″ or 1/8 eccentric electrodes. Ideal for battery tabbing. 20# force, 24v solenoid. 2 KVA/250 wt-sec rating. New Arrival |
$4,100 |
|

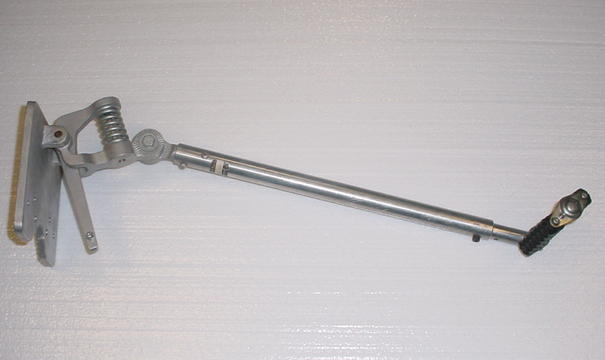

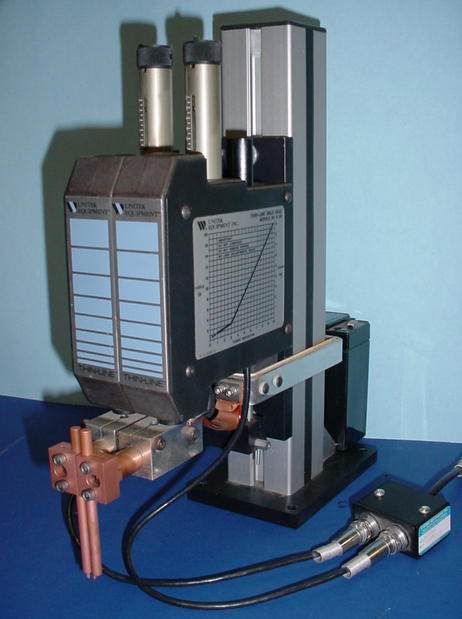

Thinline 88F foot pedal operated series head |
#WE2669B |
Unitek Miyachi Thinline 88F foot pedal operated series head, 2-161-04 1/4″ or 1/8″ eccentric electrodes with MSP foot pedal |
$3,450 |
|

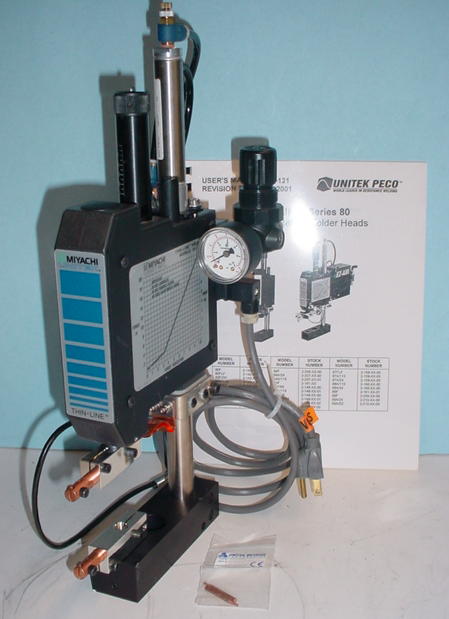

Thinline 80A air operated welding head |
#WE2670 |
Unitek Miyachi Thinline 80A air operated welding head. 80A/24 or 120. 20# force, 1/8″ electrodes, 5 KVA/250wt-sec |
$1,525 |
|

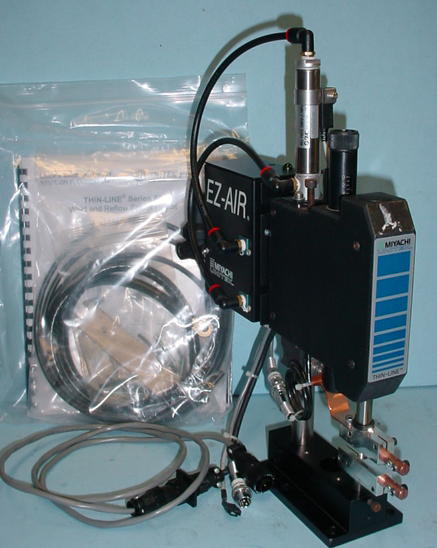

80A/EZ air operated weld head |
#WE2670A |
Unitek Miyachi 80A/EZ air operated weld head with EZ Air 2-143-04-23. CE Rated. |
$2,750 |
|

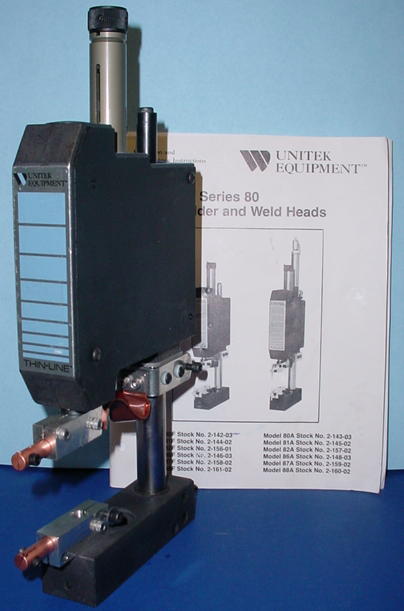

Thinline 80F weld head |
#WE2671 |
Unitek Miyachi Thinline 80F weld head, 2-142-04 20# 2 KVA/250wt-sec |
$1,425 |
|

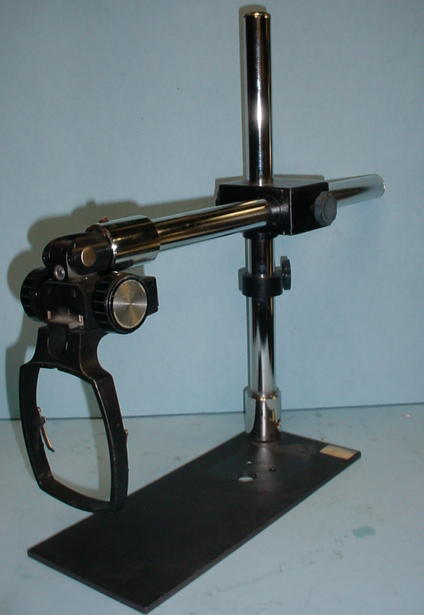

Unitek Miyachi 80 series weld head |
#WE2672 |
Unitek Miyachi 80 series weld head microscope stand, accepts B&L microscope, available at additional cost |
$695 |
|

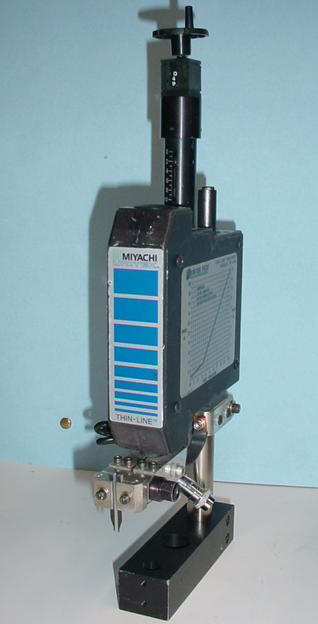

Unitek Miyachi 86F parallel gap weld head |
#WE2672A |
Unitek Miyachi 86F parallel gap weld head 2-146-03 manual, available with air, POR |
$1,975 |
|

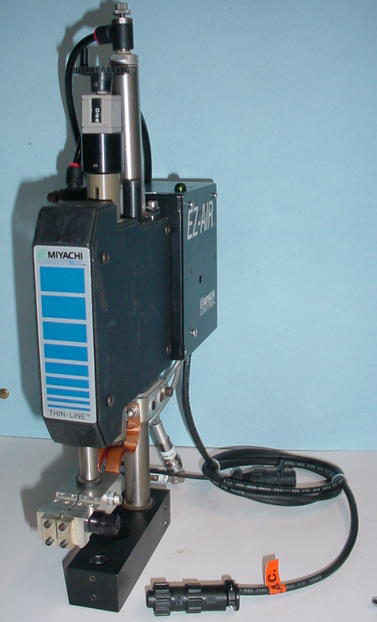

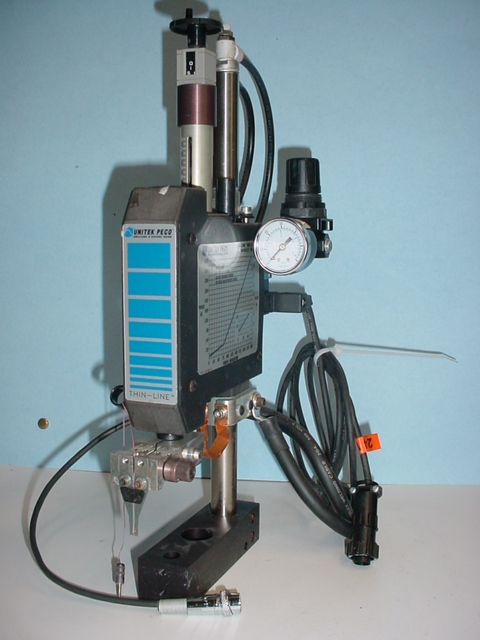

Unitek Miyachi 87A weld head |
#WE2673 |
Unitek Miyachi 87A weld head, Thermode/Unitip fixture. Air operated 2-159-02 Specify 24 or 120 vac solenoid. Add $850 for EZ Air option |
$1,950 |
|

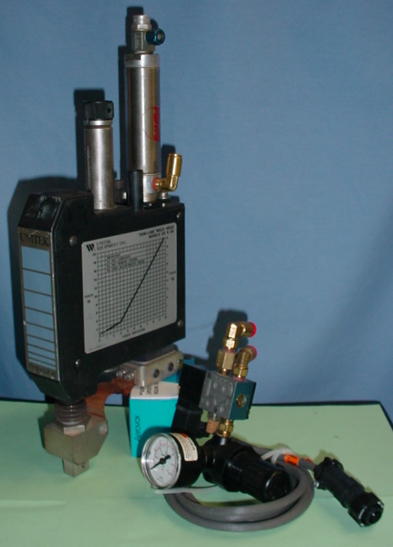

Unitek Miyachi Thinline 82A weld head |
#WE2674 |
Unitek Miyachi Thinline 82A weld head, 2-157-02, single electrode for automatic welding.6 to 40# maximum force Air operated, 24 volt coil. |
$1,450 |
|

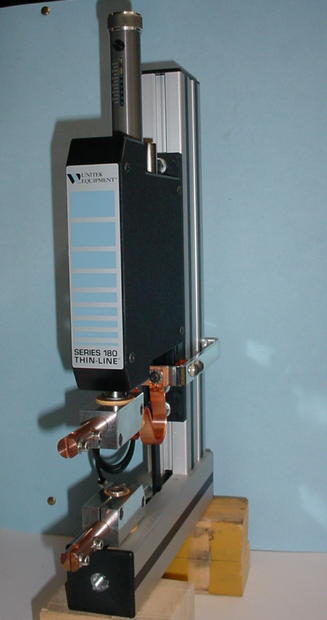

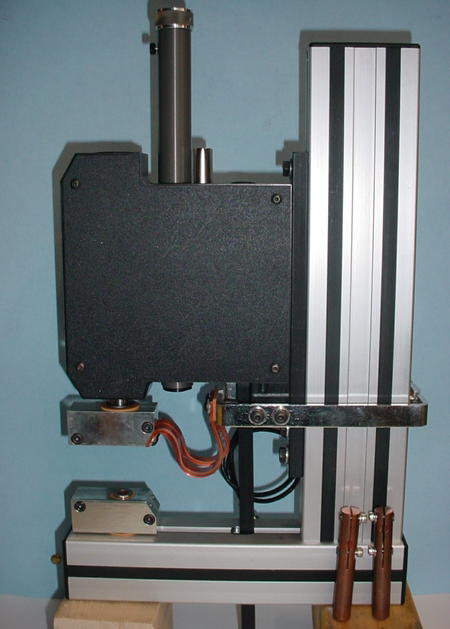

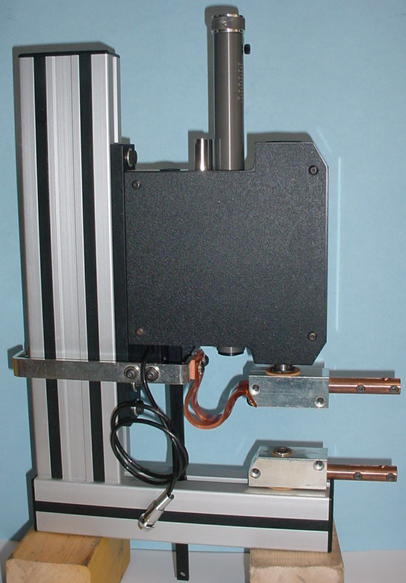

Unitek Miyachi Thinline 180F 2-164-01 |
#WE2675 |
Unitek Miyachi Thinline 180F 2-164-01 heavy duty welding head, manually operated. 5 to 100 pound force. Add $350 to convert to 180A New Surplus |
$2,550 |
|

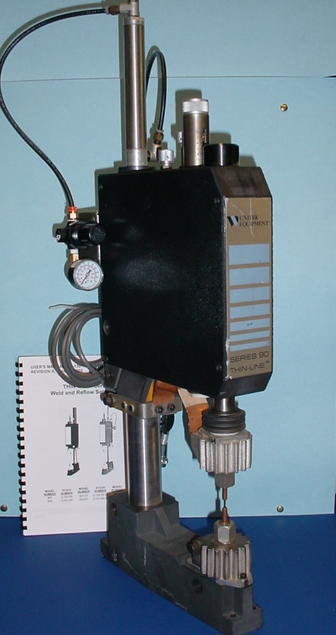

Unitek Miyachi 2-151-01 90A |
#WE2675B |
Unitek Miyachi 2-151-01 90A heavy duty weld head, air op 7-150 # force. |
$4,250 |
|

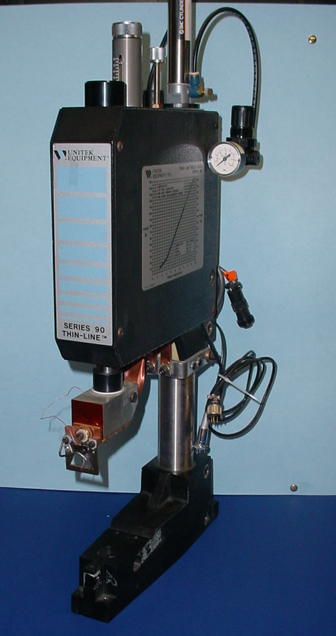

Unitek Miyachi 90RA/24 2-151-02-02 |
#WE2675C |
Unitek Miyachi 90RA/24 2-151-02-02 reflow head, heavy duty. Accepts blade style thermode to 2.5 inches |
$4,750 |
|

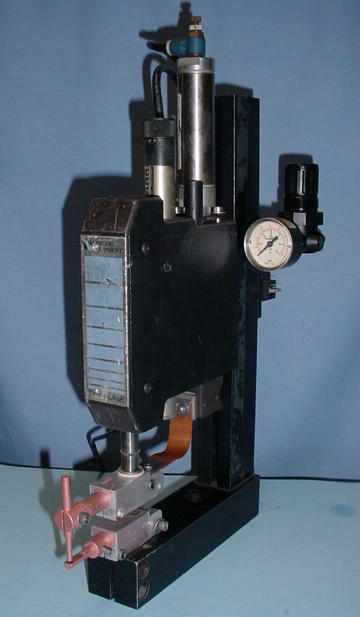

Unitek Miyachi Thinline 84A/24 |
#WE2676 |
Unitek Miyachi Thinline 84A/24 medium duty weld head 2-207-01. 1/4″ electrodes, 4 to 40# force, 24 volt air solenoid. |
$1,550 |
|

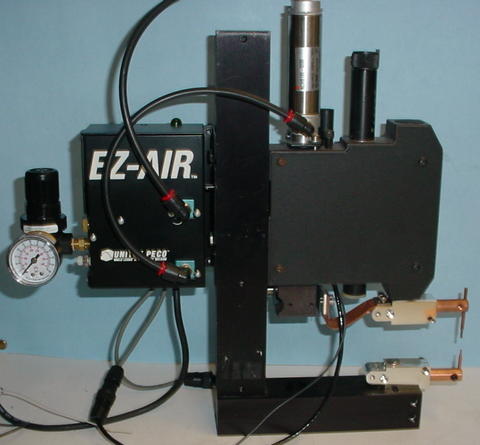

Unitek Miyachi Thinline 84A/EZ |
#WE2676A |
Unitek Miyachi Thinline 84A/EZ medium duty weld head 4 to 40# force and EZ air control. Specify 1/8 or 1/4″ electrode holders. |
$2,850 |
|

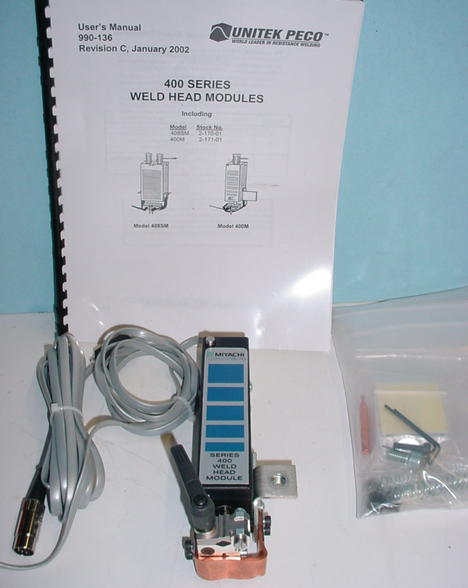

Unitek Miyachi 400M weld head |
#WE2677 |
Unitek Miyachi 400M weld head module. 4 to 16 # force. New Surplus |
$1,375 |
|

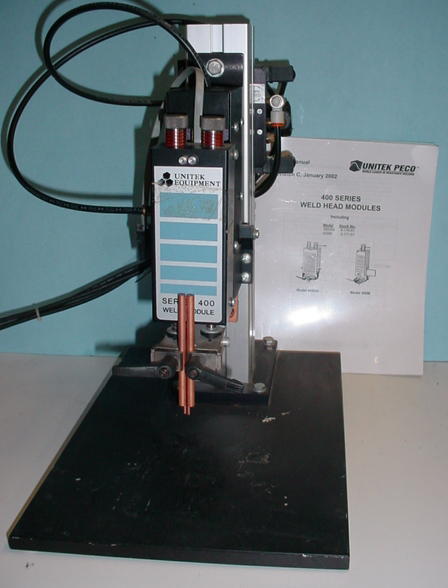

Unitek Miyachi 408SM dual weld head |
#WE2678 |
Unitek Miyachi 408SM dual weld head, with air op assembly. 24 vdc coils. |
$3,150 |
|

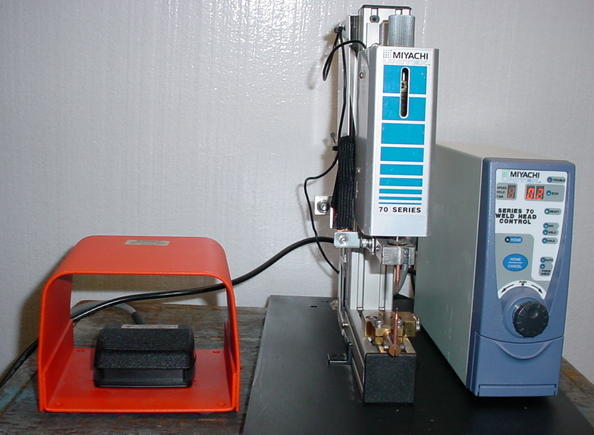

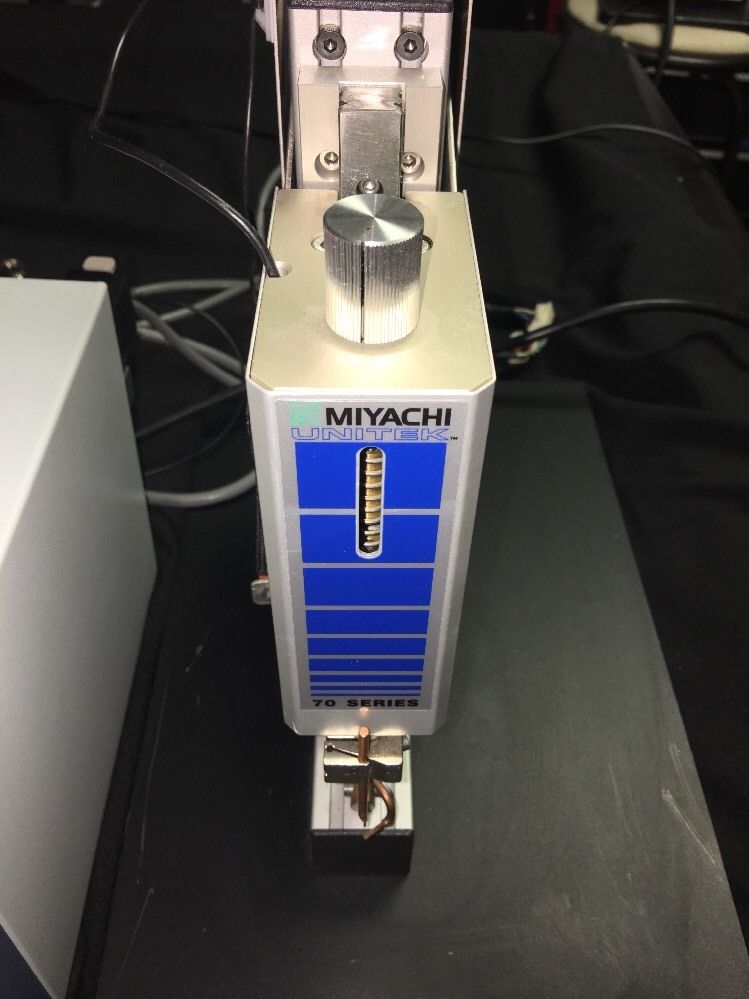

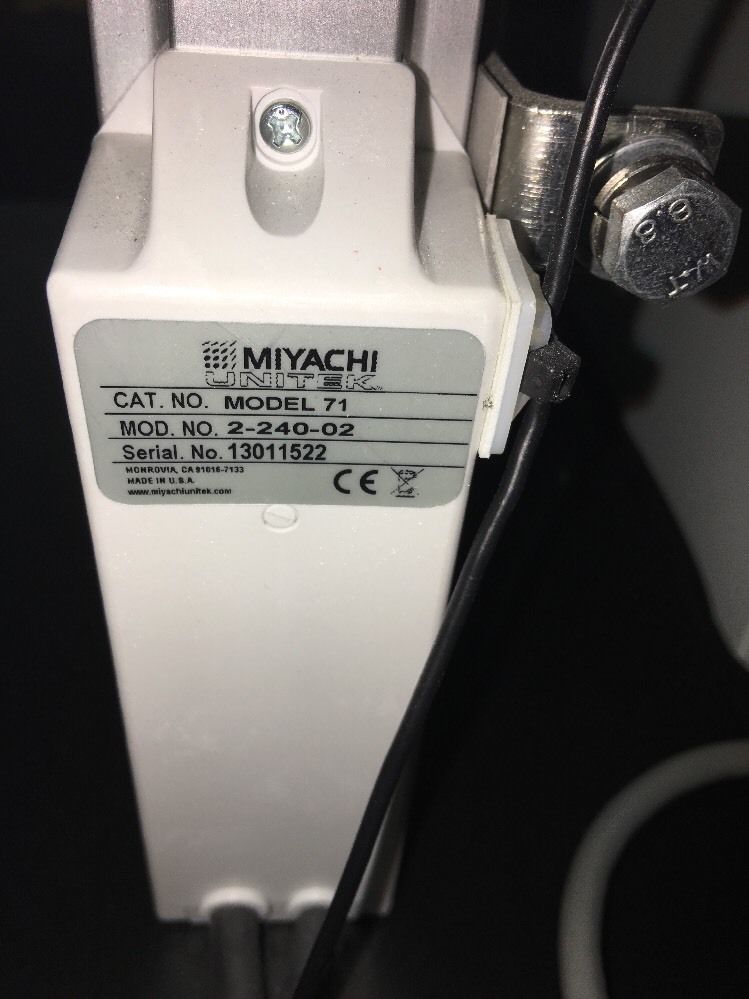

71 Precision Servo Motor Head |
#WE2678A |
Unitek Miyachi 71 precision servo motor head 2-240-02 with control and foot pedal 1 to 8# (.25# with a spring change) New Arrival |
$9,250 |
|

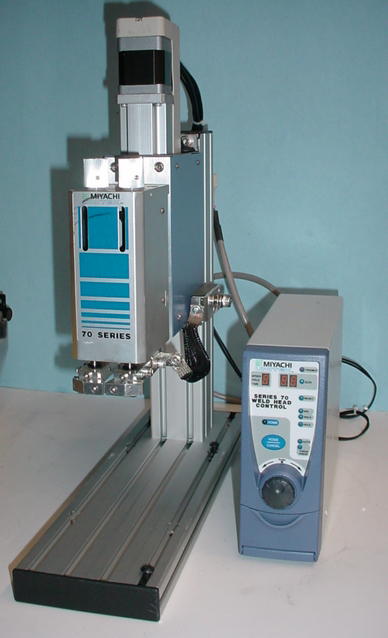

72 Precision Servo Motor Head Parallel Gap |
#WE2678B |
Unitek Miyachi 72 precision servo motor head parallel gap 2-241-02 with control 1 to 8# (.25# with a spring change) New Arrival |
$11,250 |
|

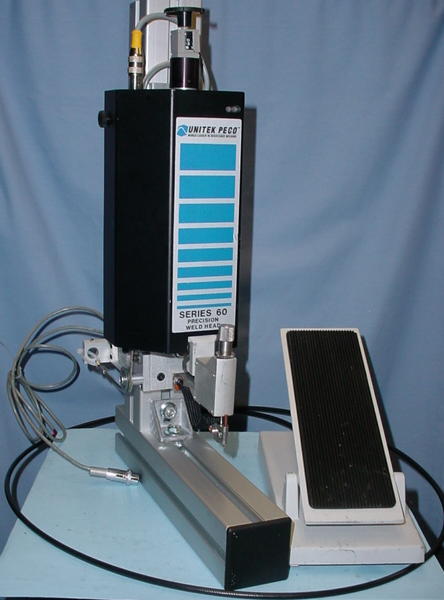

Unitek Peco 61F head |
#WE2679 |
Unitek Peco 61F head, 2-233-01, with CP pedal. 1000 amps. Manual actuation with overforce protection. 1-10# Accepts 1/8″ round electrode. |
$1,850 |
|

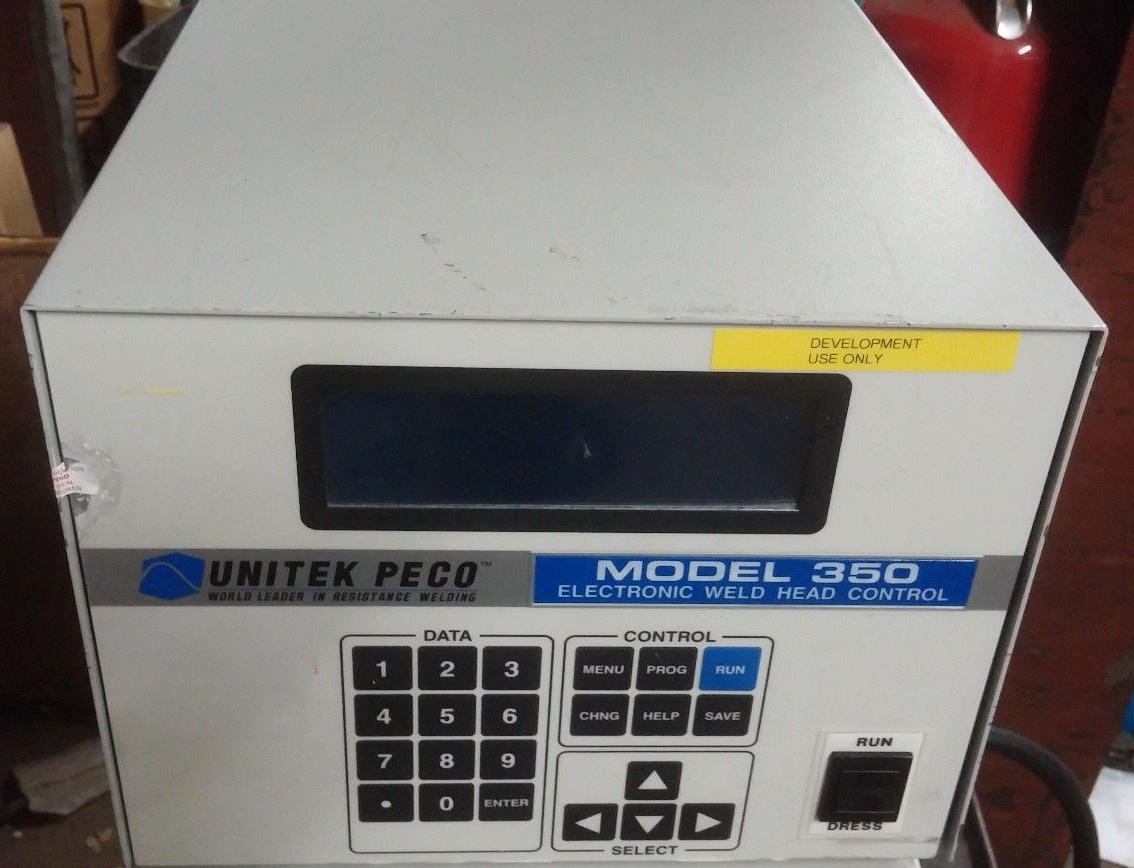

302H/115V Electromagnetic Weld Head |
#WE2679A |
Unitek Miyachi 302H/115V electromagnetic weld head with 302H/115 volt controller. New Arrival |
$7,250 |
|

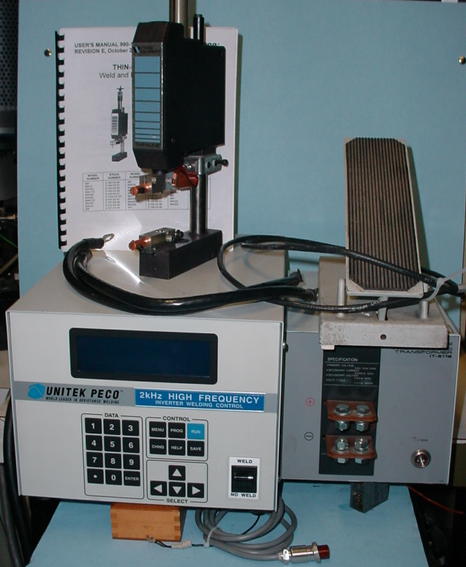

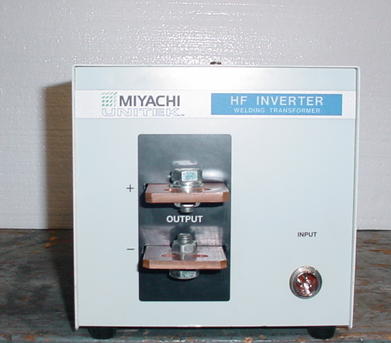

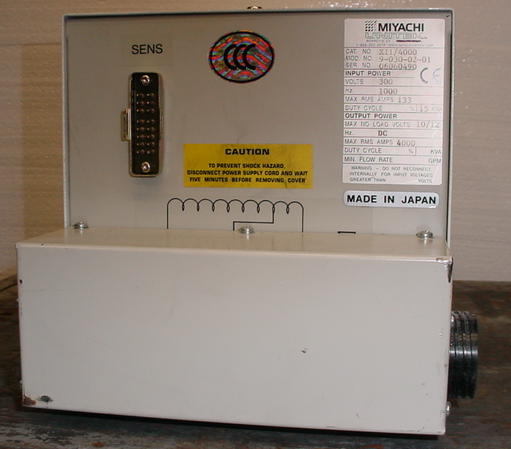

Unitek HF2/240 High Frequency Inverter |
#WE2680 |
Unitek HF2/240 high frequency inverter welding system 1-264-03, with 80F manual head and CP pedal, Choice of transformer: Miyachi X11/4000; with 3000 amp output, 9 volts, 33:1 ratio. or Miyachi IT-511B 208/60/50/3 input. Other heads available upon request |
$8,250 |
|

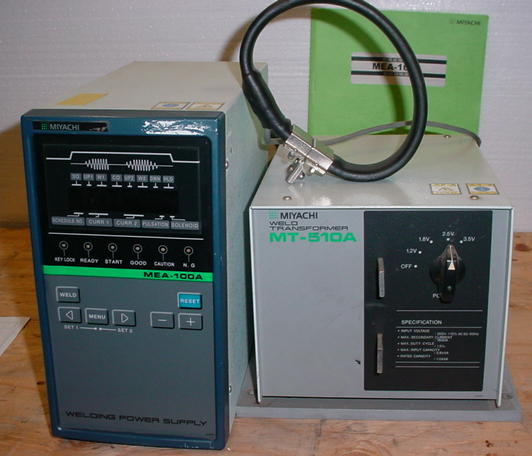

Miyachi MEA-100A AC |
#WE2681 |

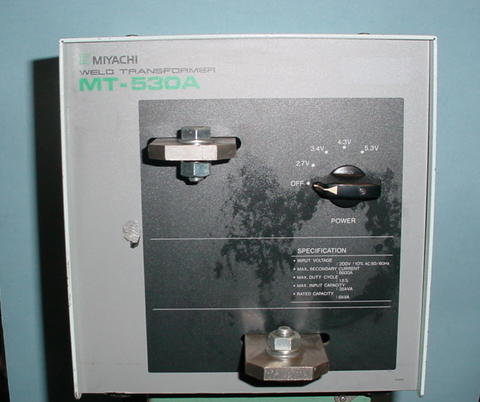

Miyachi MEA-100A AC welding controller, two pulse capability, with MT-510A transformer, 1 KVA, 1600 amps and current feedback toroid. Higher capacity transformers available. 200-220 volts, single phase. Optional (WE2681A) |
$3,950 |
|

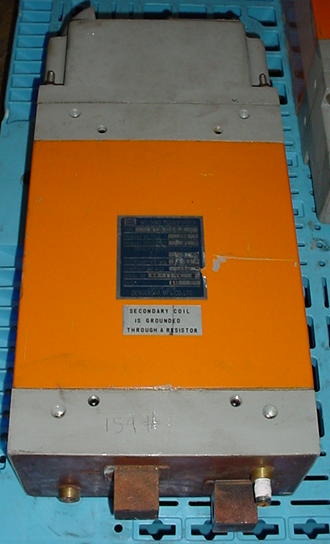

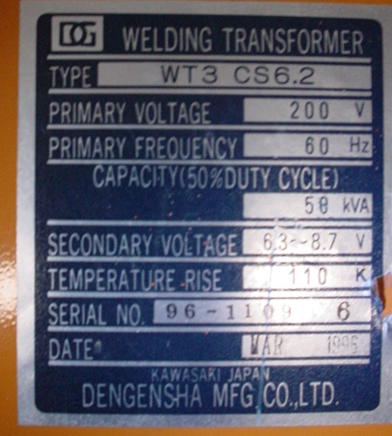

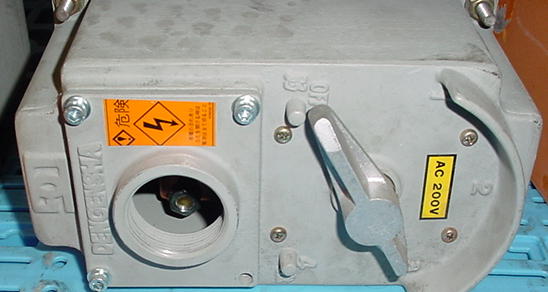

Dengensha 58 KVA Welding Transformer |
#WE2682 |
Dengensha 58 KVA welding transformer, 200/60/1 input. 6.3 to 8.7 volt secondary. 159# water cooled. Several in stock. |
$625 |
|

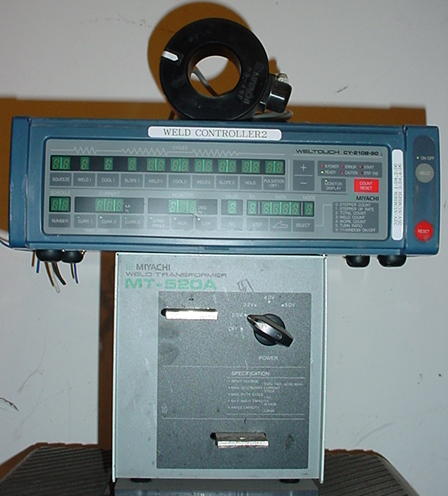

Miyachi CY-210B-90 Welding Controller |
#WE2683 |
Miyachi CY-210B-90 welding controller with integral rear mounted SCR and MT-520A transformer. 3.2 kva rated, 18.5 kva max. 208/60/1. 15 in stock |
$2,750 |
|

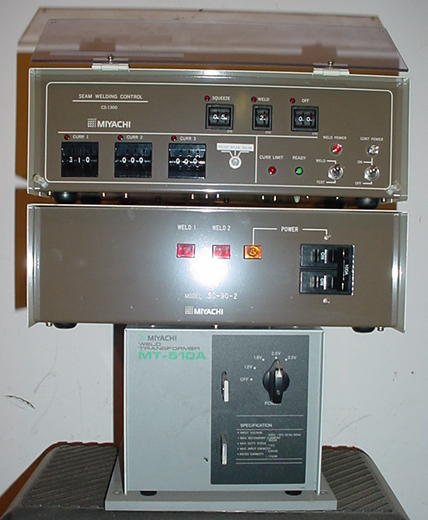

Miyachi CY-210B Welding Controller |
#WE2684 |
Miyachi CY-210B welding controller with SC-90-2 SCR and MT-510A transformer,1.6 kva rated,5.6 kva max. 208/60/1. 7 in stock |
$2,250 |
|

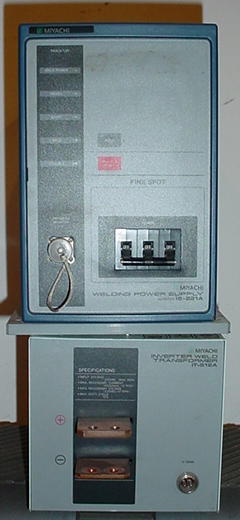

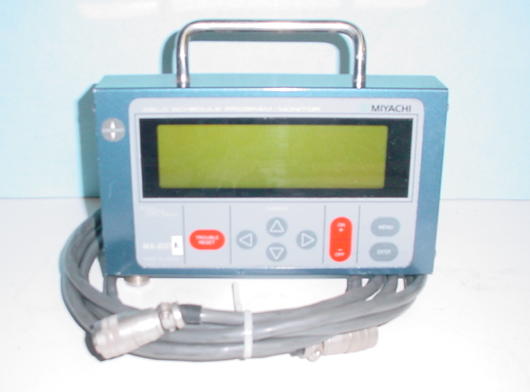

Miyachi IS-221A 1khz Inverter Welding Controller |
#WE2685 |
Miyachi IS-221A 1khz inverter welding controller with IT-512A transformer, 22 kva, 208/60/3, With MA-201 programming pendant. One or two pulse capability. |
$5,750 |
|

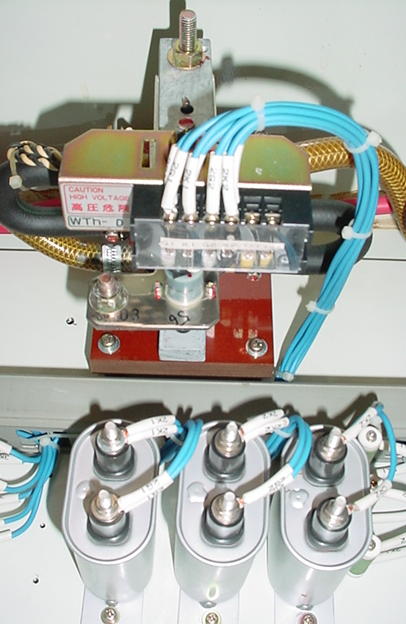

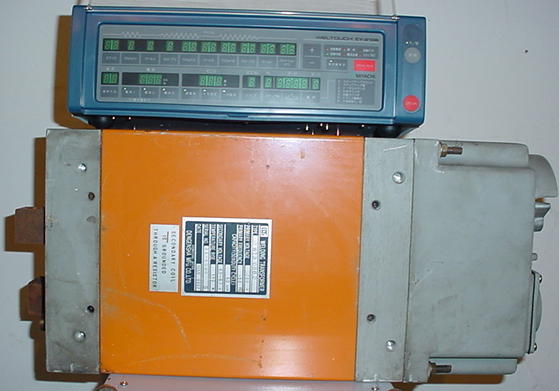

Miyachi CY-210B Digital AC |
#WE2686 |
Miyachi CY-210B digital AC welding controller with Dengensha WT3 CS6 transformer, 50 kva, and water cooled SCR. 200 x 6.3-8.7v, 60/1. |
$3,450 |
|

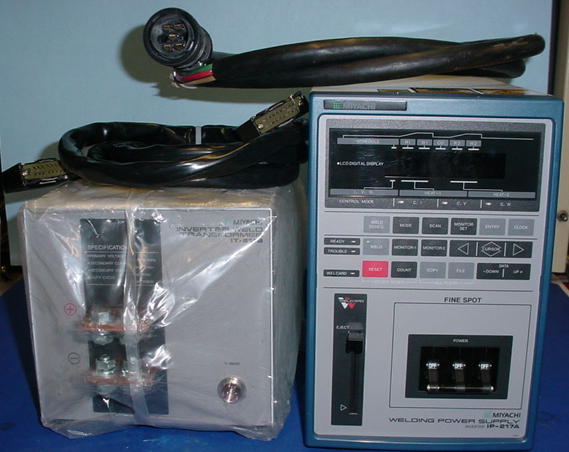

Miyachi IP-217A Programmable Power Supply |
#WE2687 |
Miyachi IP-217A programmable power supply with IT-511B transformer (new) 3,000 amps, 9 volts. 230/60/3 input. |
$3,750 |
|

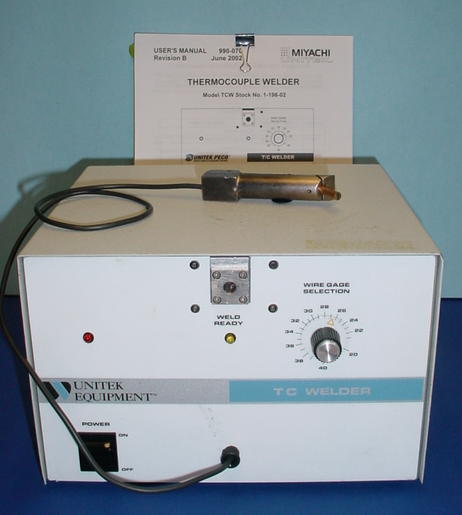

Unitek Miyachi TCW |
#WE2690 |
Unitek Miyachi TCW thermocouple welder 17# Requires argon gas. Now with #4 wire clamp jaw, 20-22 AWG |
$2,125 |
|
|

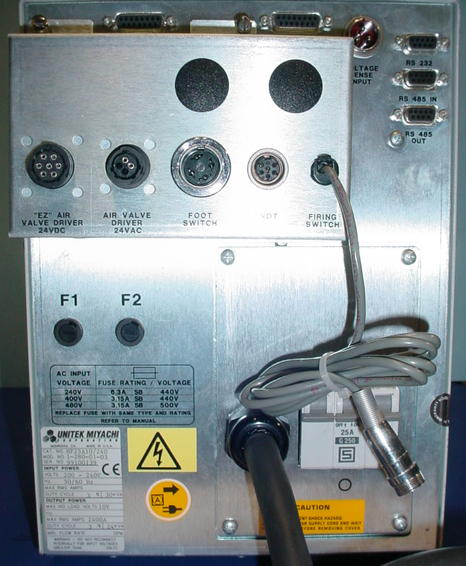

Unitek Miyachi HF25A10/240 |
#WE2691 |
Unitek Miyachi HF25A10/240 1-280-02-03 high frequency welding supply, 100- 2400 amps. With RS232 & 422 interfaces. Programmable for two successive pulses. 208/230/60/50 3 phase input. 62# |
$8,125 |
|

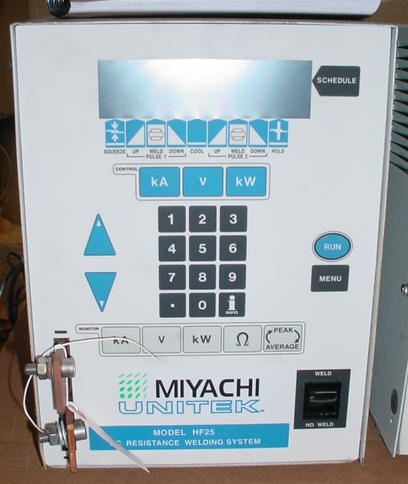

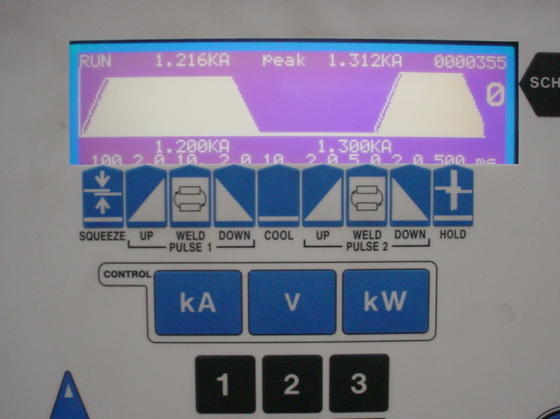

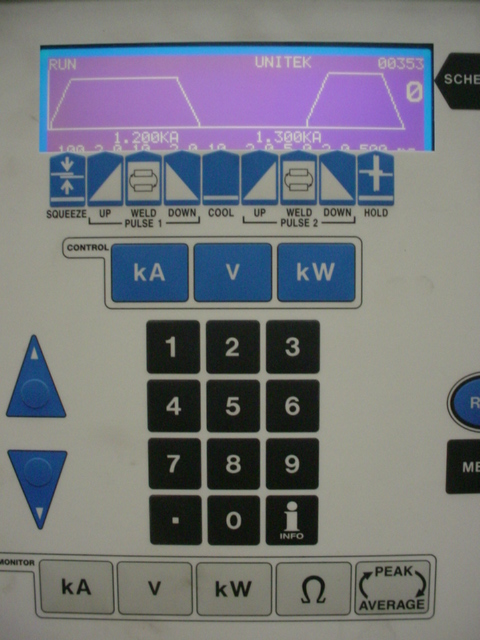

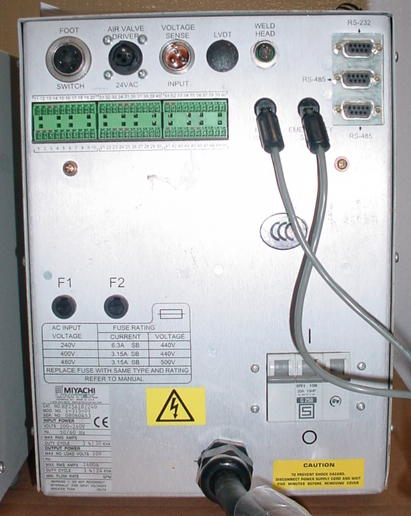

Unitek Miyachi HF25A10/240 |
#WE2692 |
Unitek Miyachi HF25A10/240 1-315-01 high frequency welding supply, 100- 2400 amps. With RS232 & 422 interfaces. Programmable for two successive pulses. 208/230/60/50 3 phase input. 47# |
$9,750 |
|

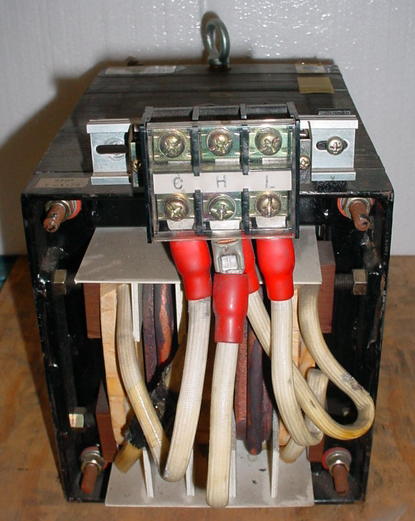

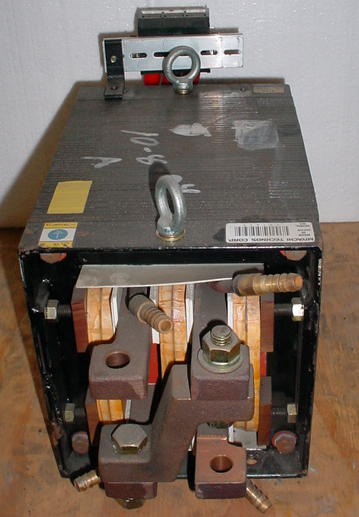

Miyachi MT-25 Transformer |
#WE2693 |
Miyachi MT-25 transformer 15 KVA 200 x 2.6/4/5.3/8 volts. water cooled 132# |
$925 |
|

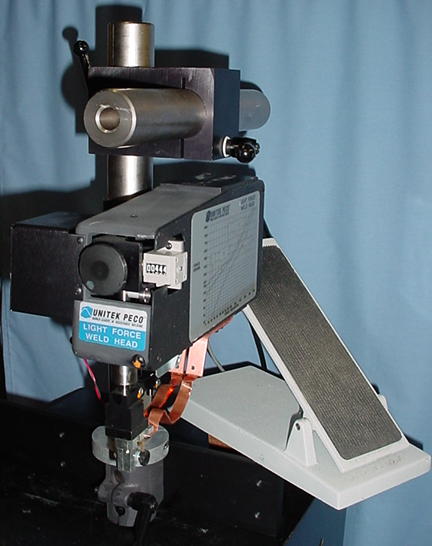

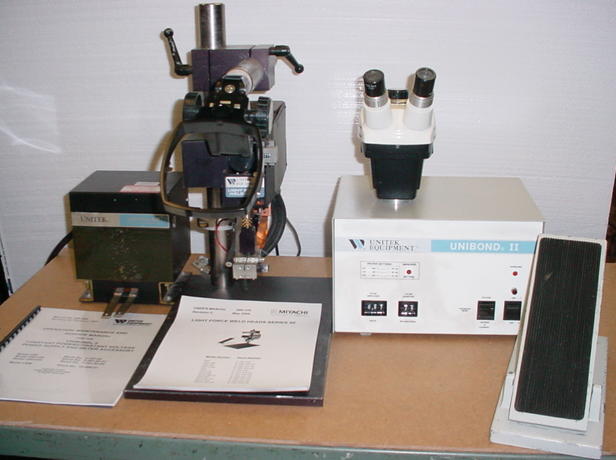

Unitek Miyachi 50F Light Force Head |
#WE2694 |
Unitek Miyachi 50F light force head with Unibond II UB2 linear power supply Takes Unitip parallel gap electrodes. With microscope and CP foot pedal. |
$6,250 |
|

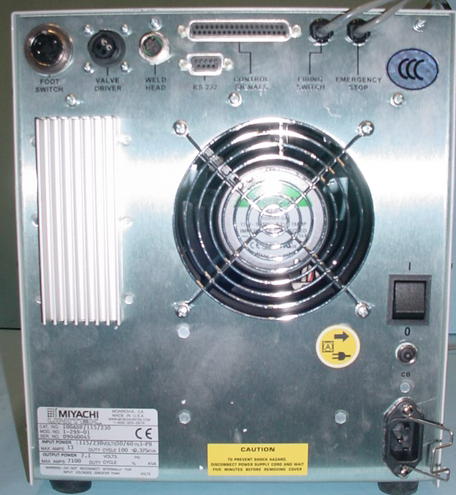

Unitek Miyachi 1-292-01-02 |
#WE2695 |
Unitek Miyachi 1-292-01-02, Uniflow2 4 KW pulsed thermode supply, 240/50/60/1. |
$5,950 |
|
|
Unitek 100ADP 1-295-01 |
#WE2695A |
Unitek 100ADP 1-295-01 advanced dual pulse capacitor discharge welding power supply, built in weld monitor. 110 to 230 volts universal voltage input. New Arrival |
$4,150 |
|
Unitek Miyachi UB25 |
#WE2697 |
Unitek Miyachi UB25 linear welding power supply with 50 light force head, opposed electrodes, CP cable, Nikon microscope, & instruction Manual. 115 volts input PIX2 PIX3 PIX4 Other electrode configurations available, with and without air including the following: PIX5 PIX6, price on request for modifications |
$14,750 |
|
Unitek Miyachi 1-291-02 |
#WE2698 |
Unitek Miyachi 1-291-02 Uniflow UNFA2/120; 2 Kw, pulsed thermode solder reflow supply. CE rated. 120 volts |
$3,950 |
|
Unitek Miyachi 80 head |
#WE2698A |
Unitek Miyachi 80 head with 1.75″ thermode heater bar and air controls. New Arrival |
$3,750 |
|
Unitek 40F Light Force Head |
#WE2699 |
Unitek 40F light force head (older version of 50F) 40 to 1000 grams, with CP pedal and B&L Scope. |
$2,950 |
