Product Catalog

USED COIL-WINDING EQUIPMENT


(Click images for larger view)

Bachi 115-E/C-SCR

#CW1101

Bachi 115-E/C-SCR winding machines, 3 preset electronic counters, 0 to 2-3/8″ winding width, 4.5″ diameter maximum, 17 AWG and finer.

SOLD

Bachi 115B. 17 AWG and Finer

#CW1102

Bachi 115B. 17 AWG and finer, 2-3/8″ traverse, 3-3/4″ OD maximum mechanical counter. Capacitor start single speed motor with two step pulley.  Now fitted with bonding fixture to pass current through completed winding.  115 volts. Change gears not included.

$2,150

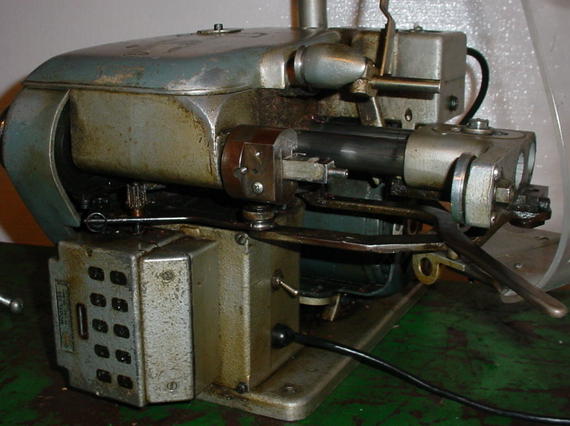

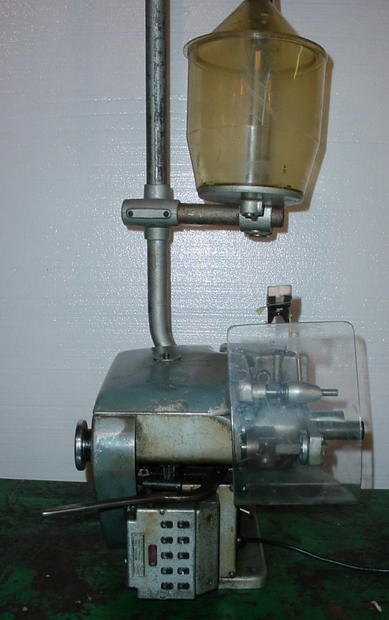

Bachi 115 Standard

#CW1102B

Bachi 115 Standard, AC motor.  series 700 electronic counter

$2,500

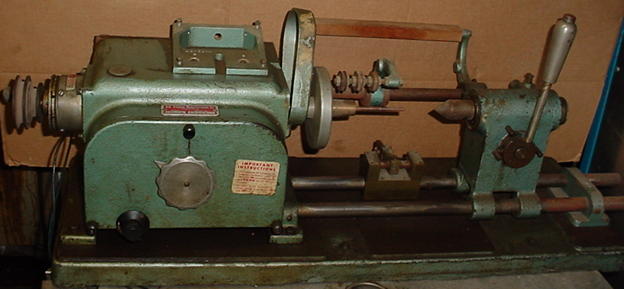

Stevens 319AM

#CW1106

Stevens 319AM, w/o motor or counter. s/n 10334 18 to 46 AWG, uses gears. Built-in cam. 130# weight

Info

$625

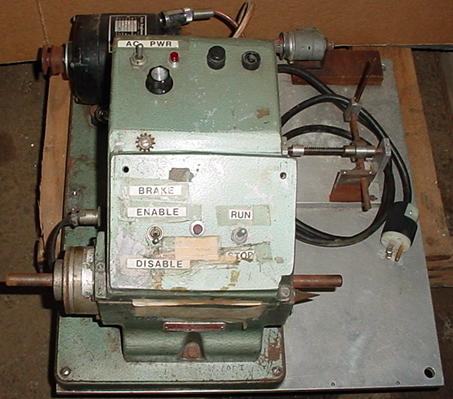

Stevens 310B AM Winder

#CW1107

Stevens 310B AM winder, w motor, parts machine only. s/n 21448

$350

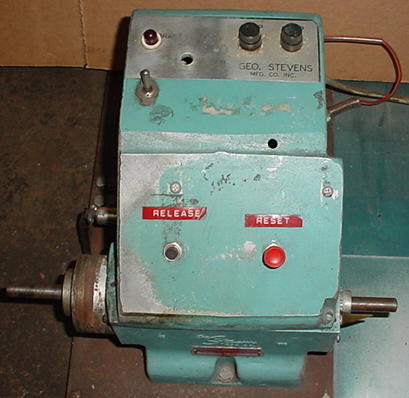

Stevens 310B AM Winder

#CW1108

Stevens 310B AM winder, parts machine only. s/n 24921

$225

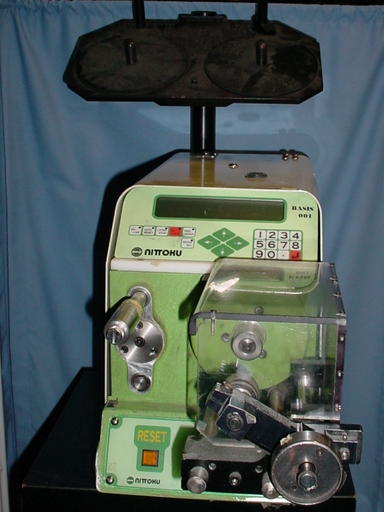

Necoa Nittoku Basis-001

#CW1111

Necoa Nittoku Basis-001 microprocessor controlled winder, 17 to 56 AWG, 1 mm to 120 mm diameter, 70mm width. RS-232C Net weight 66#, 120 volts.  3 in stock.

$3,850

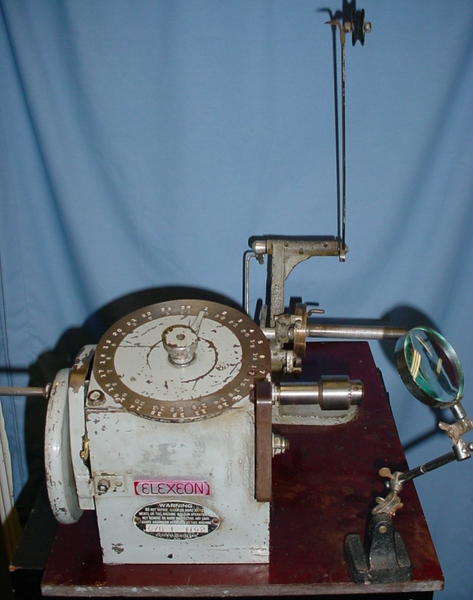

Custom Hand Winder

#CW1116

Custom hand winder, with clock/counter, 1 to 24. Each turn of hand crank yields 5 turns of chuck

$400

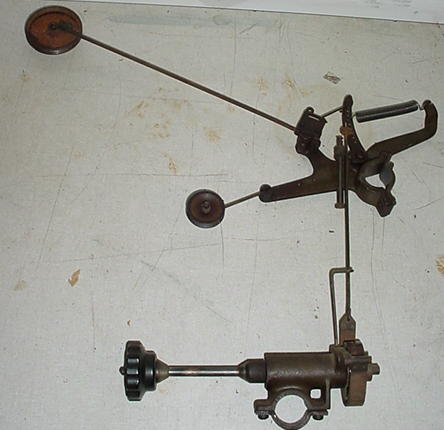

Leesona Essex 108

#CW1126A

Leesona Essex 108 tension sets  (MANY AVAILABLE) each

$175

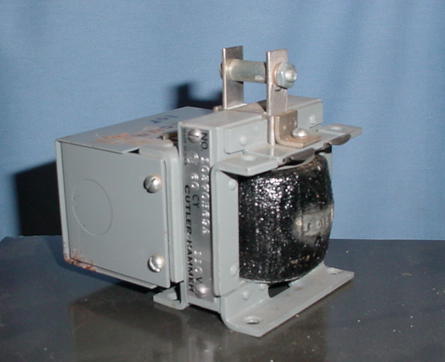

Leesona Essex 108

#CW1126C

Leesona Essex 108 brake release solenoid ES-405, 865.0025A.115 volts New Surplus. Several available.

$95

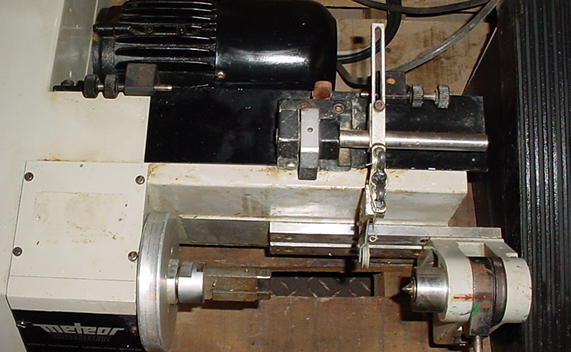

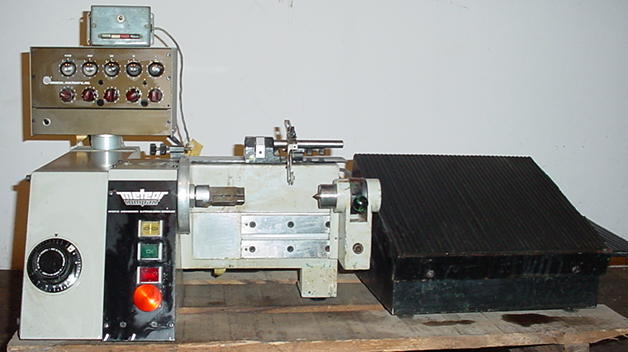

Meteor 307 Winder

#CW1129

Meteor 307 winder, 24-60 AWG, 4″ width electronic controls PIX2 as-is

$2,150

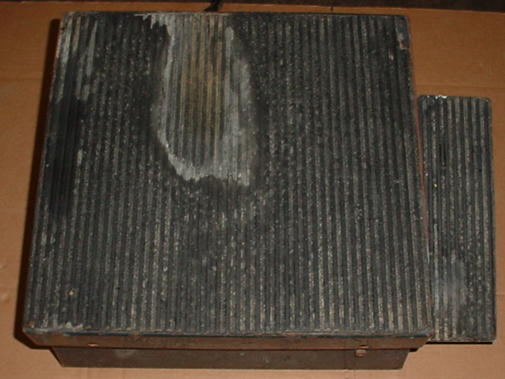

Meteor 307 Power Supply

#CW1130

Meteor 307 power supply/pedal assembly

$850

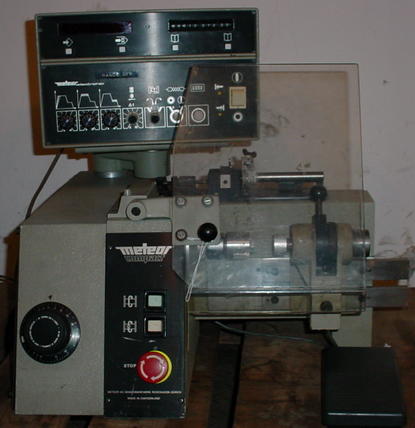

Meteor 307-101A Coil Winder

#CW1131

Meteor 307-101A coil winder 24-60 AWG, 4″ width.

$4,650

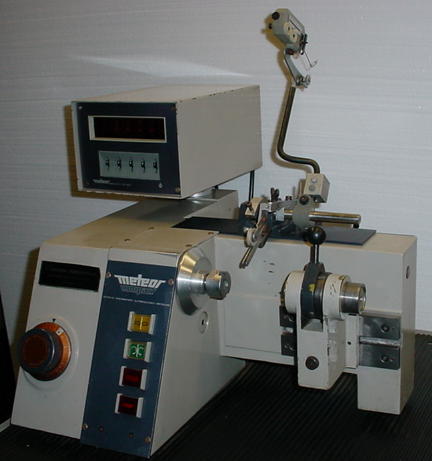

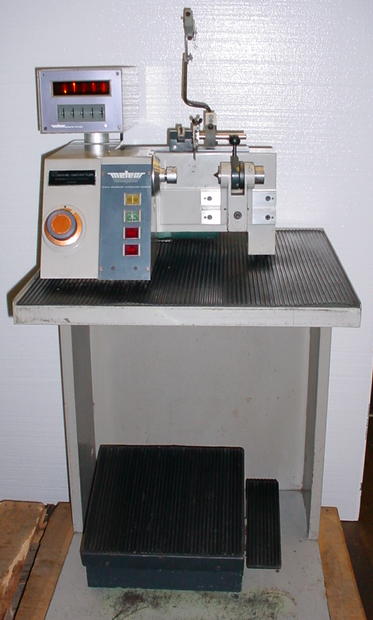

Meteor 307-01 Coil Winder

#CW1132

Meteor 307-01 coil winder, 24-60 AWG, with 483 tension and stand. Nixie tube counter readout. 115 volts

$4,650

Blume & Redecker

#CW1142

Blume & Redecker tensions,  #20-32 AWG 4 @

$295

Meteor 50″ Steel Band

#CW1148A

Meteor 50″ steel band for ME301 traverse

$175

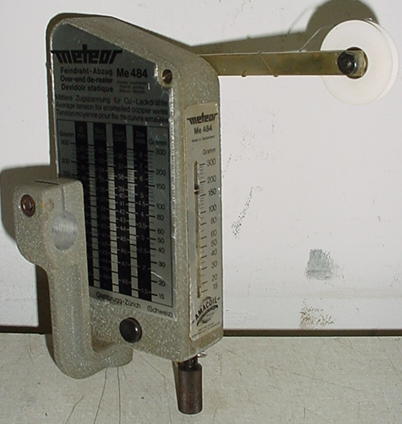

Meteor 484 Tension 32 to 46 AWG

#CW1150

Meteor 484 tension 32 to 46 AWG, 15 to 300 grams

$625

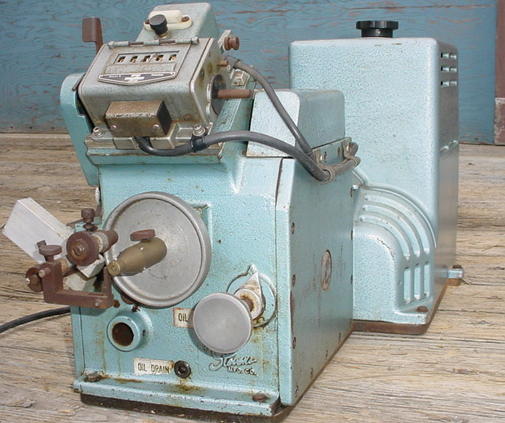

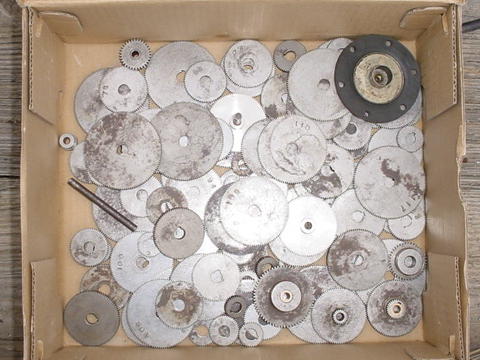

Stevens 314-AM1

#CW1163

Stevens 314-AM1 front loading bobbin winder, 0 to 2.5″ coil length, 4″ OD, 28 to 46 AWG, or to 18 AWG with speed reduction. 155#

More Info

$2,250

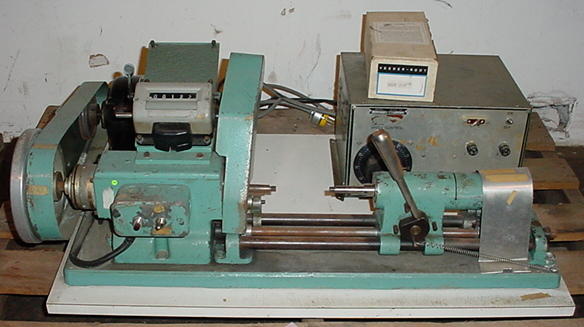

Stevens 310AM Hand Fed Coil Winder

#CW1165

Stevens 310AM hand fed coil winder w/ powered tailstock, brake & counter  1/8 hp motor s/n 19978 18-40 AWG 120# net weight

$1,950

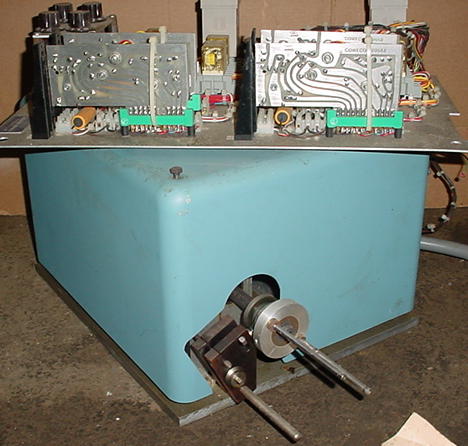

Coweco CK Winders

#CW1170

Coweco CK winders,  #18-50,  2″ w x  1½”,   takes change gears w/o tail stock or turret. Two available.  Controls for two now mounted on single panel. No tail stock.  Can be mated to an automatic turret, not included.

$1,750
