International Vacuum, Inc. Box Coater

SKU: VES0300

Price: $21,500

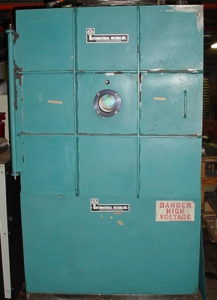

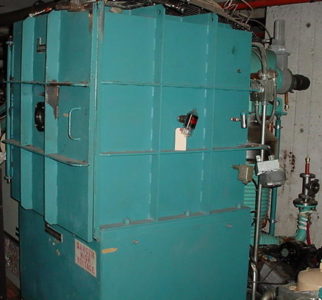

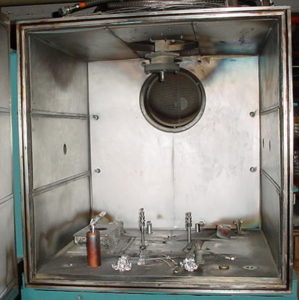

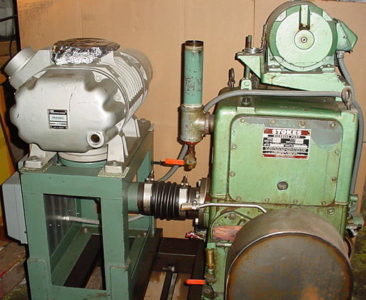

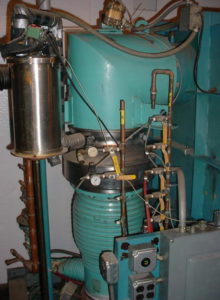

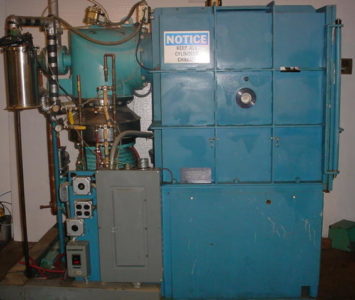

Includes 37″ w x 37″ d x 37″ tall ss vacuum chamber w/full opening, hinged, O- ring sealed door w/4″ ID viewport The pumping system consists of a Varian/NRC VHS10 diffusion pump rated at 5300 l/s air Varian/NRC 316-10 cryotrap, electropneumatic valves , 53 CFM mechanical vacuum pump to continuously back the diffusion pump & a Leybold WSU1000 blower -666 CFM close coupled with Stokes 212H11- 150 CFM- mechanical vacuum pump to be used exclusively to rough the chamber.

Chamber only available POR
