NRC /Varian 3117 E Beam Vacuum Evaporator

Home / Product Catalog / High Vacuum Equipment and Components / Evaporators & Sputterers / NRC /Varian 3117 E Beam Vacuum Evaporator
New Price

SKU: VES1100

Price: $4,950

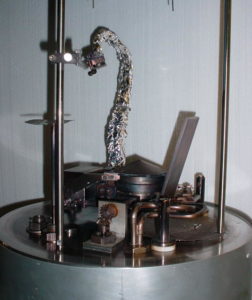

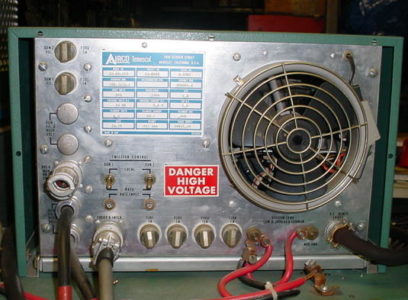

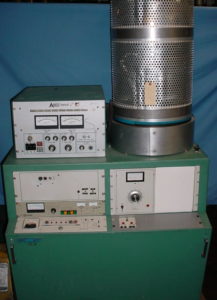

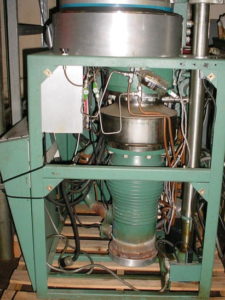

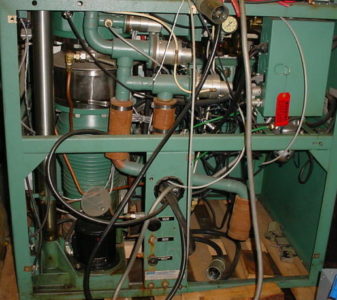

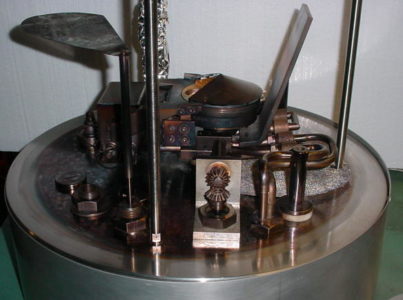

Includes 18″ dia x 30″ tall Pyrex bell jar w/implosion cage on a 20″ dia ss baseplate w/electromechanical hoist. The pumping system consists of a NRC/Varian VHS6 diffusion pump rated at 2400 l/s, a NRC 316 series LN2 trap, electropneumatic valve w/sequencer & a 17 CFM mechanical roughing pump.  Temescal TIH270 four pocket E Beam gun without a 6KW supply and combination ion & 2 position thermocouple gauge.
