OPTICAL GLASS WORKING , SLICING & POLISHINGUSED
OPTICAL MACHINERY E. McGrath
Inc, 35 Osborne St, Salem MA 01970
|
OP1900
|
American Optical hand surfacer, w/o overarm. 115 volts, 14 inch bowl
|
$575
|
|
OP1905 |
American Optical brass radius gauge set. .12 to 20. Approx 125 gauges. |
$475 |
|
OP1950
|
Askania spherometer, mechanical style. Askania
|
$750
|
|
OP2000
|
Baily Vibrator polisher, 16", 4 speed step pulley drive, fair condition.
1"-8 spindle, two 3 phase motors.
|
$1,250
|
|
OP2010
|
Bothner B27HY vertical curve generator 380/220//50/3, 150 mm
|
$13,500
|
|
OP2015
|
Bothner B15 horizontal curve generator
|
$11,500
|
|
OP2018 |
Custom hand grinder, 14" pan, 1"-8 spindle with Square D variable frequency
drive for 1 HP motor. 208-230 60/50 single phase. Top housing removable,
on wheels, 25w x 29" deep. 0 to 425 rpm.
PIX2 |
$1,175 |
|
OP2020 |
Custom draper polisher, 23.5" wheel, 30.5" pan, with two Siti 1/2 HP
hydro-kinetic variable speed drive, with speed of 10 to 44 rpm/strokes per
minute. 14" maximum stroke. In heavy duty frame, 47 x 36 x 61" high.
230/460/50/60/3. PIX2
PIX3 |
$3,150 |
|
OP2025
|
Diano-Huber x-ray system, integrated by American Instrument w/Huber 651 thin accessories
|
$11,500
|
|

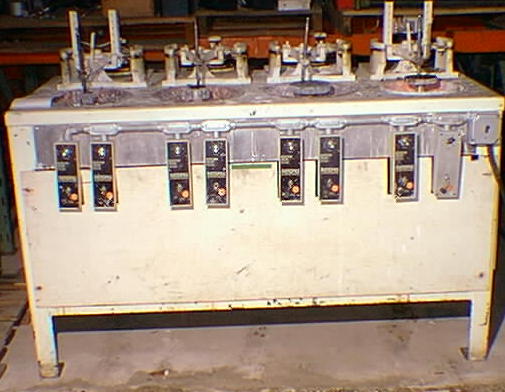

OP2028
|
Elgin 4 spindle polisher 12 inch bowl, dc drives. 120 volts. New Boston Gear
drives on spindles. 1.5" to A/O taper adapters. 68 x 31" footprint. |
$4,250 |
|
OP2029
|
Elgin 4-13 4, spindle polisher, 12" pan size, two spindles now DC, two original step pulley.
115 volts for DC motors, 208/220/440/3 for the old drives |
$3,950 |
|
OP2030 |
Elgin LP-416, 4 spindle, 16" pan polishing machine. 1/2 HP motors,
208/220/460/3. 73 x 35" footprint. 1.5" thread spindles with
three adapters for 3/4 NC. New Boston Gear drives for the spindles.
PIX2 |
$4,500 |
|
OP2035
|
Engis/Hyprez EJ-380; 15" 3 ring lapping machine. Variable speed inverter
drive, 200-220/60/50/3 input. Water cooled table. Without removable
table, rings, weights and two roller arm assemblies. |
$2,950
|
|
OP2040 |
German 3 spindle polisher, 400mm/15.5" pan size. Triple step pulleys with Hans
Lenze variable ratio pulleys for speed control. 3 motors, 3/4 HP, 220/440/60.
3/4" thread spindle adapters. 40 x 64" footprint
PIX2 New Arrival |
$5,500 |
|

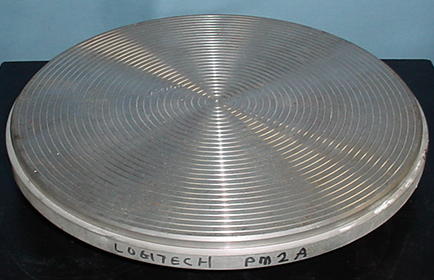

OP2045 |
Logitech PM2A 30 cm lapping plate, solder or lead surface, annular grooves,
P02/69/L30 or P02/69/S30 series. |
$825 |
|
OP2052
|
LOH Model RF3A automatic curve generator, 10-120 mm, does not include magazine
plate or turntable
|
$21,500
|
|

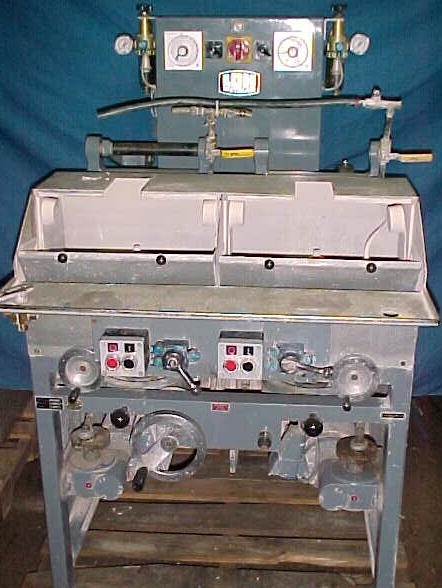

OP2060
|
LOH PM150 two spindle polisher, 150 mm, air pressure
|
$12,500
|
|
OP2062
|
LOH LP100 two spindle polisher, 190 mm capacity, +/- 30-100 mm radius, air pressure
|
$9,500
|
|
OP2064 |
LOH HLP200, two spindle polisher, 200 mm capacity, variable frequency drives,
10-220 rpm spindle, 5-40 rpm eccentric. Includes slurry pump 1,200#
PIX2 |
$9,250 |
|
OP2065 |
LOH UFM rounding machine s/n 1926
PIX2 New Arrival |
$5,750 |
|
OP2070
|
Meyer-Burger TS-3 slicing machine, 160 x 250 mm table movement, options
available: fixed stop correction ruler, rotary table, magnetic chuck, 230/60/3
Pair of two offered, as-is Machine #2 |
$5,500 set |
|
OP2075
|
Micro Mech WMA-3 ID saw, 2" capacity, auto feed, low kerf
|
$4,500
|
|
OP2076 |
Micro Mech WMSA automatic slicer 5 x 10". |
$6,250 |
|
OP2081
|
Mildex GVA-125 152 mm auto curve generator, 50-200 rpm lower spindle, 3000, 5000 7500 rpm grinding speeds
|
$12,500
|
|
OP2083 |
Nord-Spitfire SRP-5-1-2-DCT radial motion Pel grinder, 10 mm radius to 4" radius
hemisphere. 1.5 HP DC spindle, 150 to 1500 rpm, air pressure, 625#. 208/240/60/1 |
$3,950 |
|
OP2090
|
Power Technology optical fiber splicer Model 310-01 portable
|
$5,950
|
|
OP2095
|
Precise Corp high speed spindle SC1000, 10,000 to 40,000 rpm, 460/3/60, 11 amp in ½" collet
|
$4,250
|
|
OP2100
|
Raytech Industries L-105, 10" tile saw
|
$495
|
|
OP2110
|
Rigaku x-ray diffraction dual station 2991E1, for fixed angle use, w/1 Diano Detector 115V
|
$5,550
|
|
OP2111
|
Rogers & Clarke small trunion polisher
|
$2,450
|
|
OP2113
|
Rogers & Clarke 100 mm pel grinder, 1" 8 spindle.
|
$1,950
|
|
OP2112
|
Rogers & Clarke large high speed trunion polisher 0 to 30° adustment, air pressure
|
$3,500
|
|
OP2114
|
Rogers & Clarke L-250-S pel grinder, 250 mm capacity 220/60/3. 1/3 HP fixed
speed oscillation motor, 3/4 HP Eaton variable speed spindle drive with hollow
spindle for vacuum use. 600# PIX2
PIX3
PIX4 PIX5 |
$4,950
|
|
OP2115 |
Rogers & Clarke Model G-150 CNC curve generator, 150 mm, 230/3
PIX2 |
$29,500
|
|
OP2116 |
Rogers & Clarke B-25 curve generator, 230/60/3 |
$12,500 |
|
OP2119
|
Saunders & Assoc 4400 auto quartz crystal blank sort system
|
$3,950
|
|
OP2122
|
Shuron 210A hand grinders, pedestal mounted. A/O taper,14" bowl. 115 volts 800 rpm. 3@
|
$750
|
|
OP2130
|
Shuron hand edger, ceramic Mod 67 A/D V-belt drive 2@
|
$475
|
|
OP2133
|

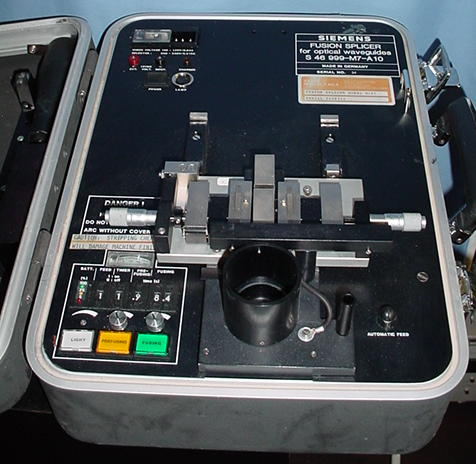

Siemens fiber optics fusion splicer, S46-999-M7-A10 in carrying case.
|
$3,750
|
|
OP2134 |
Speedfam Gyromatic cabinet |
$350 |
|
OP2135
|
Speed lap mounting station, for use w/SPAW 24 machine 2@
|
$750
|
|
OP2136 |
Standard Electrical Tool Co curve generator, Type D3, Model 100. with 3 HP grind
spindle and several diamond wheels. Needs work on controls. |
$4,250 |
|
OP2138
|
Strasbaugh 37C lap lathe, work oscillates on a 120° arc. Cutter is air/hydraulic fed,
2 di to 20 di. 115 volts, two speed 1 HP motor.
PIX2
PIX3 PIX4
PIX5 |
$4,250
|
|
OP2139 |
Strasbaugh 6DA-DC polisher, 16 inch pan, DC variable speed drive with air
pressure. 230/60/1 |
sold |
|
OP2140
|
Strasbaugh Model 6AN draper, 36", 0-20" eccentric +14" offset DC variable speed
|
$6,250
|
|
OP2147 |
Strasbaugh 6AK-2 precision cylinder polisher, 2 spindle, 0 to 7" diameter, 0 to
15" length. spindle 10 to 100 rpm, 16 to 160 rpm oscillation. 220/60/3. 20
x 45 x 50H high, 565 # |
$3,250 |
|
OP2148 |
Strasbaugh 7Y curve generator, 9" capacity |
$14,500 |
|
OP2149 |
Strasbaugh 7AC centering machine |
$7,950 |
|
OP2150
|
Strasbaugh 7L, 3" centering, edging & beveling machine dual grind spindles , 90° fixed
|
$11,500
|
|
OP2151 |
Strasbaugh 6T hand grinder, 15" pan, 12" lap capacity, 11" from spindle to arm.
115 volts 9 to 90 rpm special low speed, AC drive. 115 volts. w/o overarm |
$825 |
|
OP2152 |
Strasbaugh, maybe, deep pan hand grinder, 17" pan, Reeves style variable
pulley speed, 3/4 HP, 184T motor, 220/440/60/3 with foot switch. 3/4" thread. 25
x 35" footprint. New Arrival |
$825 |
|
OP2153 |
Strasbaugh 6BU hand grinder. Oscillating arm removed. Now with DC motor
PIX2 |
$625 |
|
OP2155
|
Udagawa 50 pellet grinder, 2 spindle, 5" capacity. Two speed lower tilting
spindle, two speed powered quill.0 to 25° tilt. 1"-8 spindle. In out horizontal
movement on quill. Variable air down pressure. 208/260/60/3.
PIX2
PIX3 |
$4,950
|
|
OP2163 |
Udagawa UJ1-II or RBG Optical UCG-8 manual vertical curve generator. 90-200
mm capacity, 2-11 rpm lower spindle, 2300/3500 rpm grind spindle, tilt to
20°. 2 hp. May need some work. PIX2 |
$5,750 |
|
OP2165
|
Varian/Norton 7134 double sided gear lapper, 3½" track, 5½" od gears. With slurry pump. Will hold 9 gears, not included. 115 volts
|
$2,750
|
|
OP2167
|
York FK11 fiber optic cleaver, electronic, battery operated. |
$1,575
|
|
|
|
|
|
|
TUBE & LAMP MACHINERY |
|
|
OP4004
|
Markem 47A tube marker for small diameter round components 2000/hr
|
$ 850
|
|
OP4008
|
Standard Tool of NJ index unit, 12 station w/26" dial plate type 6l086, 40 to 1 reduction, 90° index AS-NEW
5 @ |
$1,950
|
|
OP4010
|
Commercial cam C. 8 station index drive, C8H24-90 with clutch. Not mounted
|
$1,100
|
|
|
USED
GLASS BLOWING EQUIPMENT
|
|
|
OP5002
|
Various accessories, including fires, valves and chucks
|
POR
|
|
OP5022
|
Sylvania/Rockwell vertical glass lathe, common drive, twin head DC drive 5@
PIX2
PIX3
PIX4
PIX5 |
$1,650
|
|
OP5052 |
Litton model C vertical sealing , partial, uses rotating fires, missing
|
$650 |
|
OP5054
|
Litton model D vertical sealing , partial, uses rotating fires, missing
|
$650
|
|
OP5056 |
Felker 80BQ cut off saw with
X-Y rotary stage and 10" diamond wheel |
$4,950 |
|
OP5060 |
N M Knight, Polarizing Instrument Company C-36 magnifying polariscope 14"
screen, 10 power lens. 100 watt halogen lamp
New Arrival |
$2,950 |
|
OP5062 |
Wilt Industries 225 quartz annealing oven, 24 x 18 x 18" high inside. 1200 C
maximum temperature. Watlow 982 ramping controller 220/60/3, 40 amps 2,000# net weight
PIX2 |
$5,950 |
|
|
978-744-3546
www.emcgrath.com
5/7/08 |
|
|
|
